Precision Engineered Metallic Pumps for Every Application

Our Metallic Pumps range offer versatility in sizes, capacities, and material options to suit any process fluid application. These pumps are adept at handling flows of up to 1200 m3/hr, catering to a wide range of acids, alkalis, and solvents at temperatures up to 280°C and elevated pressures. We can provide the right solution for circulating and transferring your liquid chemicals. Choose Chemitek for customizable solutions designed to meet your specific fluid transfer needs with precision and efficiency.

pump
Features & Benefits
  • ASME(ANSI.) B73.1-compliance.
  • Investment Cast wetted part
  • Magnetic drain plug.
  • Extra-large capacity epoxy-coated oil sump.
  • Registered alignment between frame and adapter.
  • Standard and low-flow models available.
  • Heavy duty power frames

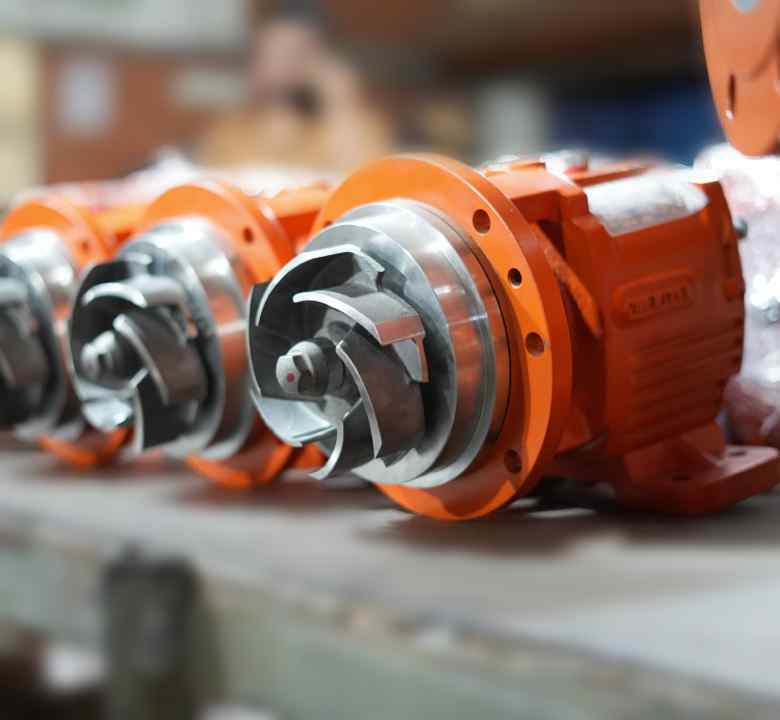

  • Fully open impellers with rear adjustment capability.
  • Wide variety of mechanical seal options.
  • Dynamically balanced impellers.

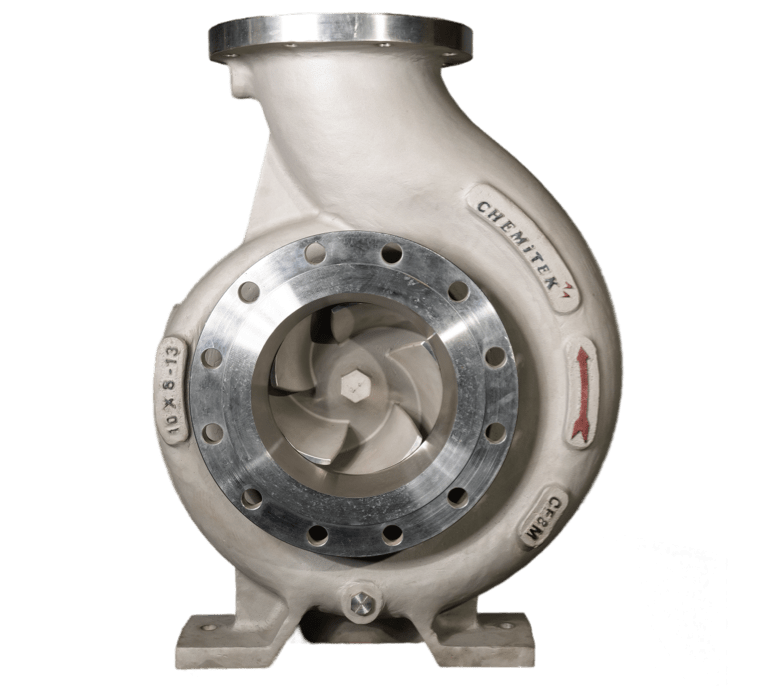

Centrifugal Pumps

ANSI / ASME B73.1

Our Pump model is available in a wide range of sizes, capacities and materials to fit virtually any process-fluid application. With more than 30 selections and multiple design options, we’ve got your application covered — for abrasives, corrosive media.

feature
Features & Benefits
  • ASME(ANSI.) B73.1-compliance.
  • Investment Cast wetted part
  • Magnetic drain plug.
  • Extra-large capacity epoxy-coated oil sump.
  • Registered alignment between frame and adapter.
  • Standard and low-flow models available.
  • Heavy duty power frames
  • Fully open impellers with rear adjustment capability.
  • Wide variety of mechanical seal options.
  • Dynamically balanced impellers.
metallic

Technical Specification

Nozzel Size 25MM to 250MM (1" To 10")
Maximum Flow 1200 M3/HR
Maximum Head 120 M
Flange Rating ASA 150 / ASA 300
Maximum Operating Temp 270 °C
Maximum Working Pressure 25 KG / CM2 (BAR)
Standard ANSI / ASME B73.1
Impeller Type Open / Semi-Open
Other Technical Data Max. temperature: 371°C (700°F).
Three stuffing-box options available.
Multiple port sizes available.
Multiple seal-flush plans available.
Base plates available in various MOC.
Certified testing as per Hydraulic Institute and material certifications per ASTM.
moc
MOC
  • Cast Steel (WCB)
  • SS304 (CF8)
  • SS316 (CF8M)
  • SS316L (CF3M)
  • Hastelloy-B
  • Hastelloy—C
  • Alloy20
  • Super Duplex
  • Nicket CZ 100
  • MONEL
  • Ni-Hard
  • CD4MCU6
  • Titanium

Note : Super Alloys / Exotic Alloys as per Client Requirement.

Design Features

non-metallic-process
1
Casing
  • Top discharge.
  • Self venting.
  • Back pull-out.
  • Thickness exceeds ANSI B73.1 specifications for better life.
2
Impeller
  • Standard investment casting open impeller Design.
  • Adjustment of clearance is easy when wear & tear takes place.
  • Ideal for corrosive & abrasive liquid.
3
Shaft & Bearing
  • Heavy duty shaft design for minimum deflection.
  • Designed for toughest services.
  • Maximum 0.05 mm deflection at stuffing box face at maximum load.
  • Exceeds ANSI B73.1 bearing life specification requirements.
4
Constant Level Oiler
  • It ensures sufficient oil level in the bearing housing for reliable lubrication.
  • Polycarbonate dome offer excellent visibility and its virtually unbreakable.
5
Oil Sump Design
  • Increased oil capacity for better heat transfer.
  • Contoured internal Slope for positive collection of metal contaminants by magnetic drain plug.
  • Copper finned cooler for high process temperature from 171°C to 371°C.
6
Shaft Sealing
  • Multiple seal chamber for maximum sealing flexibility.
  • Accommodate all mechanical seal manufacture's Components and ANSI cartridge seal configurations.
  • Support the full array of CPI seal support system options.
  • Ensures superior leak protection with maximum heat dissipation, maximizing seal life & pump reliability.
7
Flange
  • Standard 150 lb. FF flanges, 300 lb. flanges available.
8
Bearing Housing
  • Telescopic Design
  • Easy Impeller adjustment
9
Bearing Frame
  • Heavy duty design to reduce the loads on shaft.
10
Oil Seal
  • Standard NBR / labyrinth oil seal to protect oil against contamination and extend the bearing & shaft life.
1 Casing
  • Top discharge.
  • Self venting.
  • Back pull-out.
  • Thickness exceeds ANSI B73.1 specifications for better life.
2 Impeller
  • Standard investment casting open impeller Design.
  • Adjustment of clearance is easy when wear & tear takes place.
  • Ideal for corrosive & abrasive liquid.
3 Shaft & Bearing
  • Heavy duty shaft design for minimum deflection.
  • Designed for toughest services.
  • Maximum 0.05 mm deflection at stuffing box face at maximum load.
  • Exceeds ANSI B73.1 bearing life specification requirements.
4 Constant Level Oiler
  • It ensures sufficient oil level in the bearing housing for reliable lubrication.
  • Polycarbonate dome offer excellent visibility and its virtually unbreakable.
5 Oil Sump Design
  • Increased oil capacity for better heat transfer.
  • Contoured internal Slope for positive collection of metal contaminants by magnetic drain plug.
  • Copper finned cooler for high process temperature from 171°C to 371°C.
6 Shaft Sealing
  • Multiple seal chamber for maximum sealing flexibility.
  • Accommodate all mechanical seal manufacture's Components and ANSI cartridge seal configurations.
  • Support the full array of CPI seal support system options.
  • Ensures superior leak protection with maximum heat dissipation, maximizing seal life & pump reliability.
7 Flange
  • Standard 150 lb. FF flanges, 300 lb. flanges available.
8 Bearing Housing
  • Telescopic Design
  • Easy Impeller adjustment
9 Bearing Frame
  • Heavy duty design to reduce the loads on shaft.
10 Oil Seal
  • Standard NBR / labyrinth oil seal to protect oil against contamination and extend the bearing & shaft life.

Customization

Jacketing1
Jacketing2

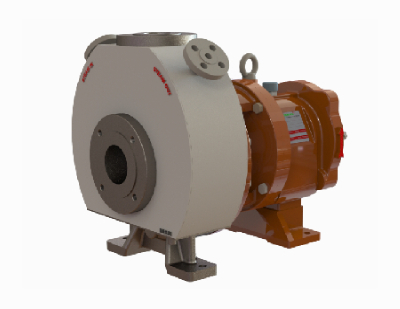

Jacketing
  • Larger Jacket cavity Volume for efficient circulation for efficient circulation of heating /cooling media.
  • Circuit breaker Arrangement.
  • Inlet/Outlet Flange Connections.
  • Drain Connection available.
  • Jacketing MOC-MS/SS304/SS316 as per customer requirements.
Alternate Text
Alternate Text

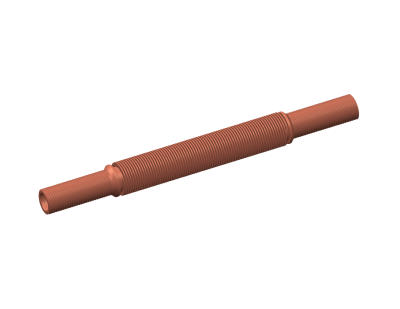

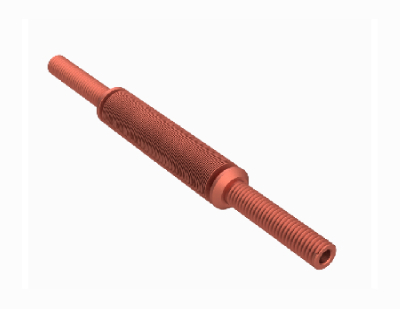

Finned Cooler
  • MOC - Copper.
  • Directly cools Oil for lower bearing operating temperature.Requires minimum cooling water.Corrosion resistant construction.Recommended for temperatures above 171 Deg C.
Alternate Text
Alternate Text
Alternate Text

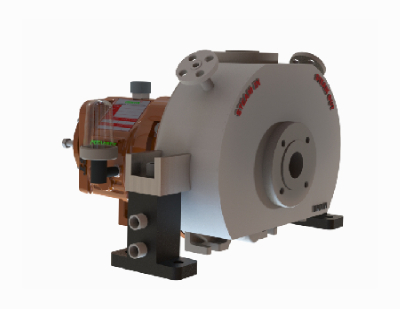

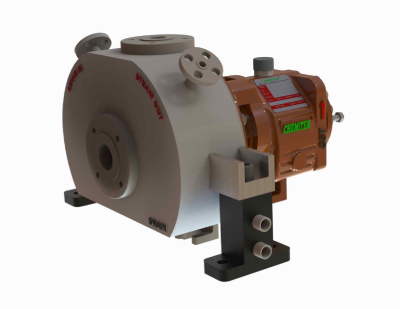

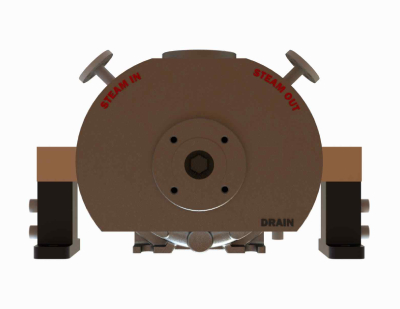

Center support Design
  • Center support design for high temperature application.
  • Centreline Mounted casing
  • Water cooled casing leg
Alternate Text

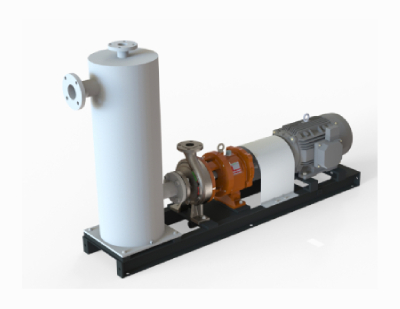

Priming Pot
  • Priming Pot provides self-priming capabilities by allowing horizontal centrifugal pumps to be upgraded to self-priming pumps.
  • Available in MOCs - MS,SS304, SS316. Other MOCs As per client Requirement.
Alternate Text

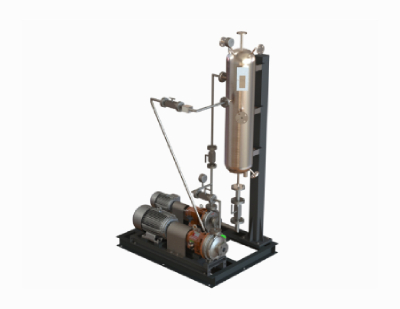

Tailor made Solutions
  • Customized solution for critical applications.
Process

Investment Cast (WAX Loss)

01 Wax Making

Wax replicas of the desired castings and produced by injection moulding using a metal die. These replicas are called "patterns".

Alternate Text
02 Wax Assembly

This patterns are attached via a "gate" to a central wax stick, referred to as a "tree" or "sprue", to form a casting cluster or assembly, and mounted on a pouring cup.

Alternate Text
03 Investing

A shell is built by immersing the assembly in a liquid ceramic slurry and then into a bed of extremely fine sand. Several layers may be applied in this manner.

Alternate Text
04 Dewaxing

Once the ceramic is dry, the wax is melted out in an autoclave, creating a negative impression of the assembly within the shell. The shell mould is then fired in a high temperature oven.

Alternate Text
05 Casting

The shell is filled with molten metal using various techniques and, as the metal cools, the parts, gates, tree and pouring cup become a solid casting.

Alternate Text
06 Knock Out

When the metal has cooled and solidified, the ceramics shell is broken off by vibration or water blasting.

Alternate Text
07 Cut Off

The parts are cut away from the central tree using a high speed friction saw.

Alternate Text

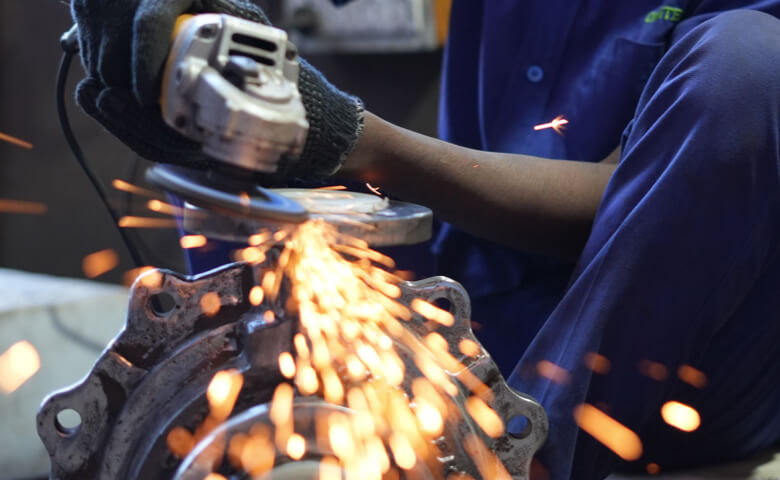

08 Finishing

Minor finishing operations, such as fettling and grinding, are undertaken to produce a metal casting identical to the original wax pattern.

Alternate Text
