Precision Engineered Centrifugal Metallic Pumps

Master your most critical applications with centrifugal pumps precision-cast in Titanium, Nickel, and Exotic Alloys for unparalleled reliability and performance.

Handle Demanding Flows
Conquer Extreme Temperatures
Eliminate Corrosion
Flawless Performance

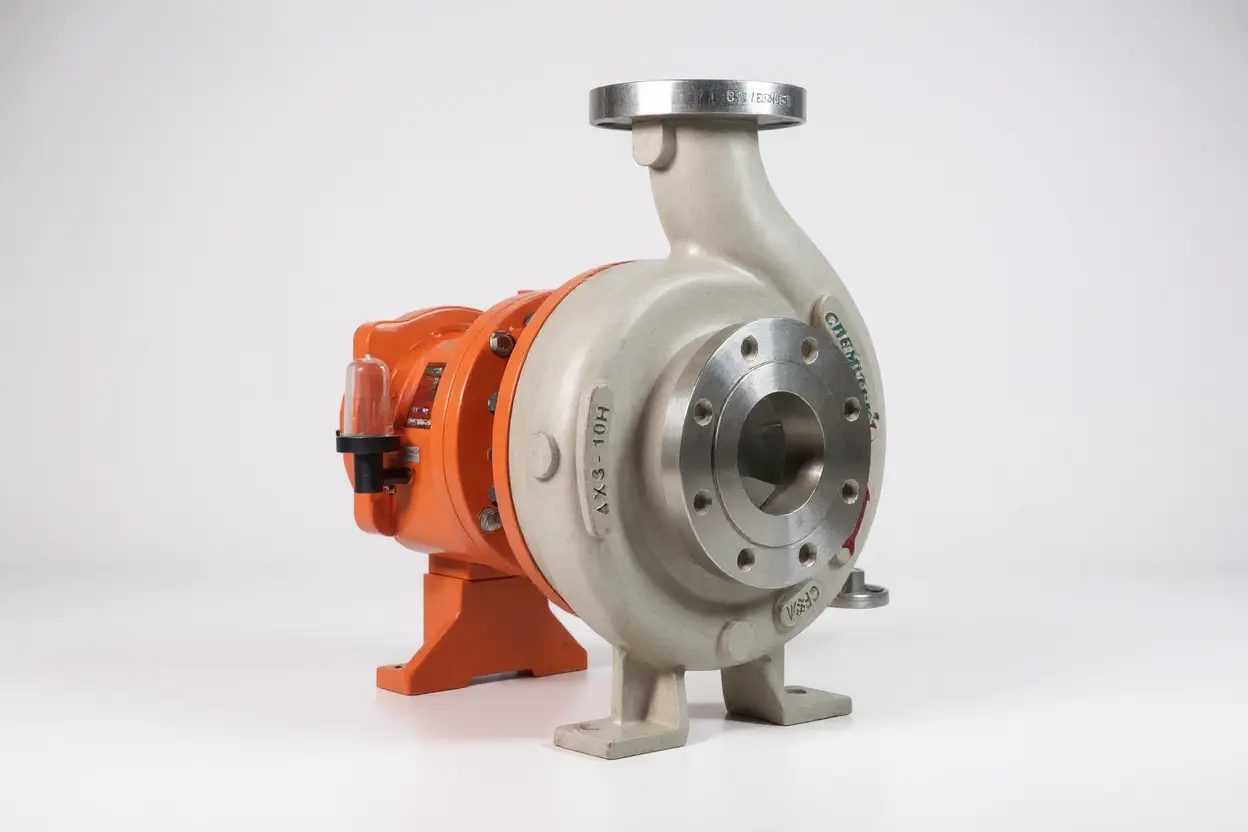

Chemitek Metallic Pump - Main View
ANSI/ASME B73.1
Complied Design
300°C
Max Temp Handling
1400 m³/hr
Process Flow Rate

Download Technical Brochure

Get instant access to detailed specifications, performance curves, and technical data for our metallic pump range.

Thank you! Your brochure is downloading now. Check your downloads folder.

Get Your Custom Quote

Share your details and our metallic pump specialists will provide a tailored solution for your industrial needs.

Thank you! Your quote request has been submitted successfully. Our team will contact you within 24 hours.
ANSI/ASME B73.1
ANSI/ASME B73.1
ISO 9001:2015
ISO 9001:2015
ISO 14001:2015
ISO 14001:2015
ISO 45001:2018
ISO 45001:2018

Features & Benefits

Discover the advanced engineering features that make our centrifugal pumps the preferred choice for demanding industrial applications. Each component is designed for maximum reliability, performance, and operational efficiency.

ASME (ANSI) B73.1 Compliant Design

Engineered to meet ASME (ANSI) B73.1 standards for horizontal end-suction centrifugal process pumps, ensuring interchangeability, reliability, and industry-standard performance.

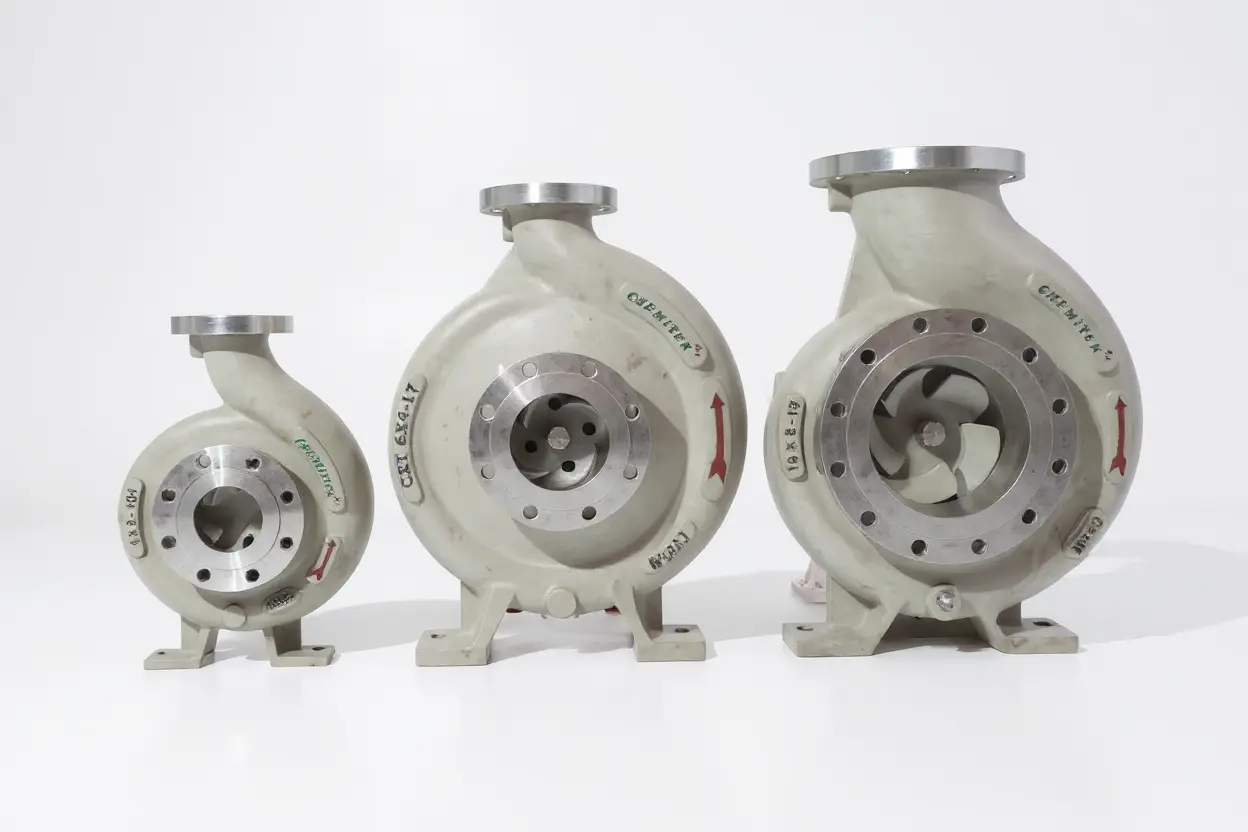

Investment Cast Wetted Parts

Precision-engineered wetted components manufactured using investment casting for superior surface finish, dimensional accuracy, and corrosion resistance.

Heavy Duty Power Frames

Robust construction provides exceptional durability and vibration resistance, ensuring long-term reliability in demanding industrial environments with minimal maintenance requirements.

Fully Open Impellers with Rear Adjustment

Open impeller design handles solids-laden fluids effectively while rear adjustment capability allows for easy maintenance and performance optimization without pump disassembly.

Wide Variety of Mechanical Seal Options

Comprehensive seal selection ensures optimal performance for your specific application, from standard single seals to specialized double and cartridge seals for hazardous or high-temperature services.

Advanced Design Features

Features include magnetic drain plug for easy maintenance, extra-large capacity epoxy-coated oil sump, registered alignment between frame and adapter, dynamically balanced impellers, and both standard and low-flow models available.

Technical Specifications Overview

Advanced non-metallic pump solutions engineered for superior chemical resistance and optimal performance in demanding industrial applications.

Parameter Specification
Nozzle Size Range 25MM to 250MM (1" to 10")
Maximum Flow Rate 1000 M³/HR (4400 GPM)
Maximum Head 120 M (394 Ft)
Flange Rating ASA 150 / ASA 300
Max. Operating Temperature 210°C (410°F)
Max. Working Pressure 25 KG/CM² (25 BAR / 365 PSI)
Design Standard ANSI/ASME B73.1 Compliant
Impeller Configuration Open / Semi-Open Design
Shaft Sealing Mechanical Seal - Inside Single/Double

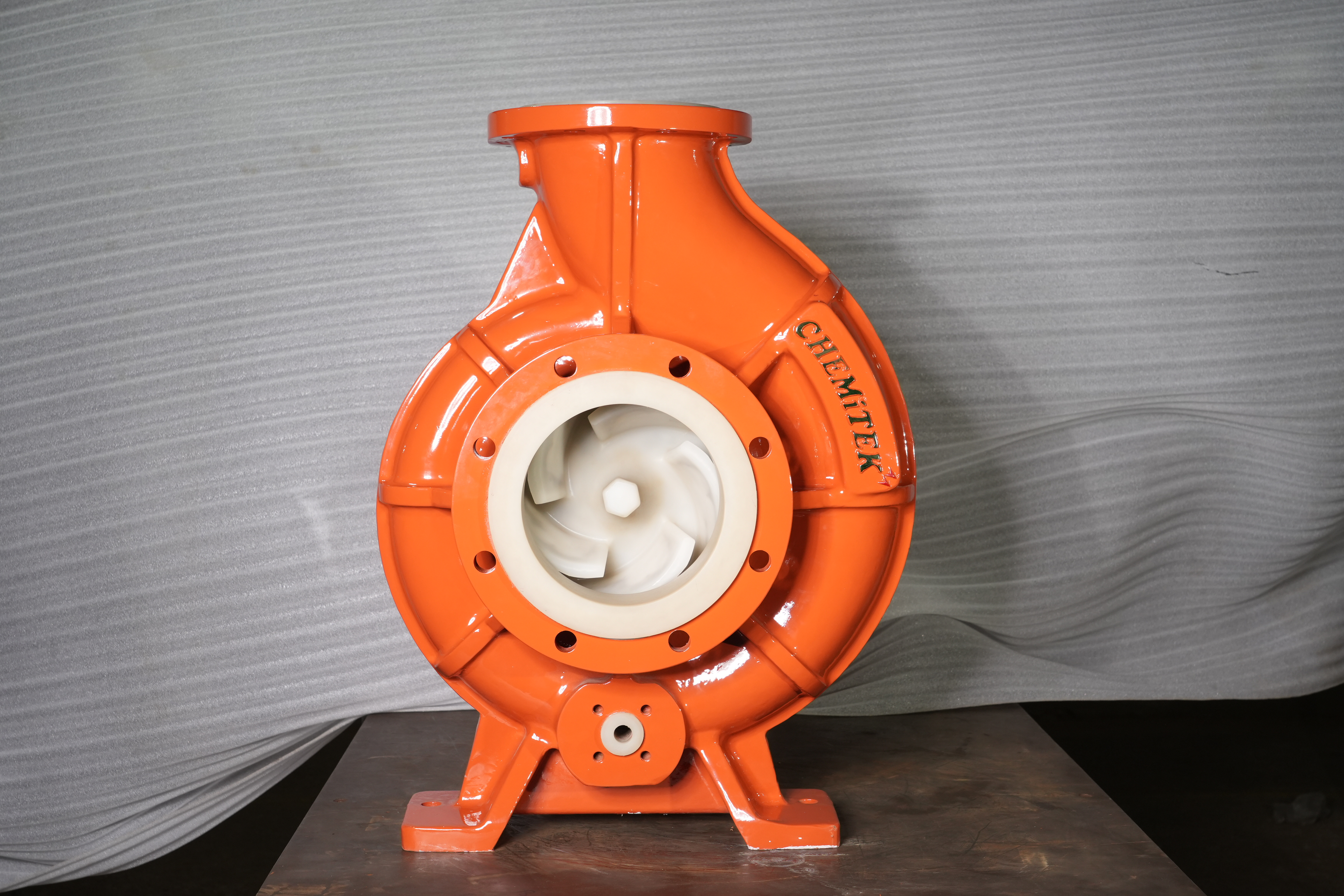

Material of Construction
Kynar PVDF
Neoflon PFA
Neoflon FEP
PPH Polypropylene
Premium grade materials from Arkema-USA, Daikin-Japan, and Lyondellbasell-Netherlands

Download Technical Brochure

Get detailed specifications and technical drawings for our non-metallic pump solutions.

Success! Your brochure download will begin shortly. Check your email for additional resources.

Proven Performance
Across Critical Industries

Engineered for the most demanding sectors, our pumps deliver precision, reliability, and performance where it matters. From chemical processing, pharmaceuticals, fertilizers, steel and more.

Chemical Industry

Fluorochemicals

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

 Specialty Chemical Industry

Specialty Chemical

Precision pumping for specialty chemicals and fine formulations with exceptional purity and contamination control.

 Steel Industry

Steel Industry

CRM (Cold rolling mills), ARP (Acid regeneration Plants), Pickling, CPL (Continuous Pickling Lines), ETP (Effluent Treatment Plant), Scrubber.

 Chemical Industry

Fertilizer

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

 Chemical Industry

Dyes & Intermediaries

Filter press, Transfer of Slurries without disturbing particle size, ETP.

 Chemical Industry

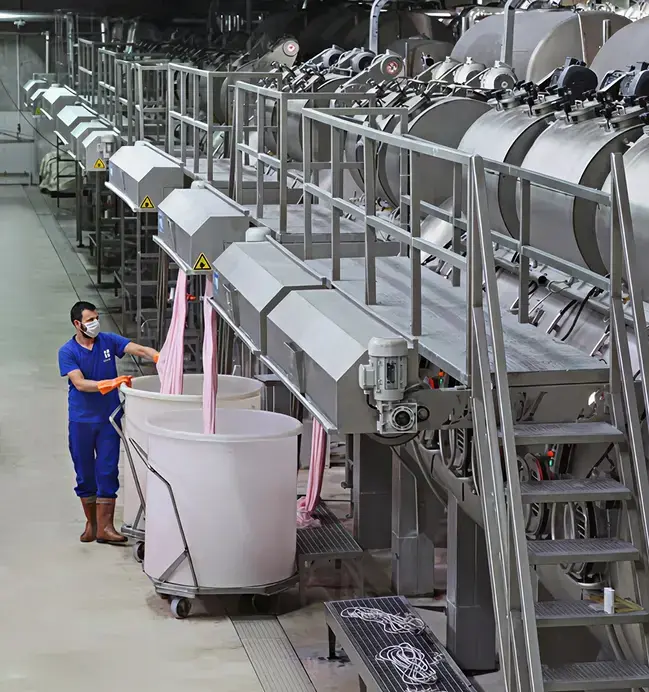

Textile

Master your most critical applications with non-metallic centrifugal pumps engineered for corrosive dye liquors, bleaching agents, and textile chemicals.

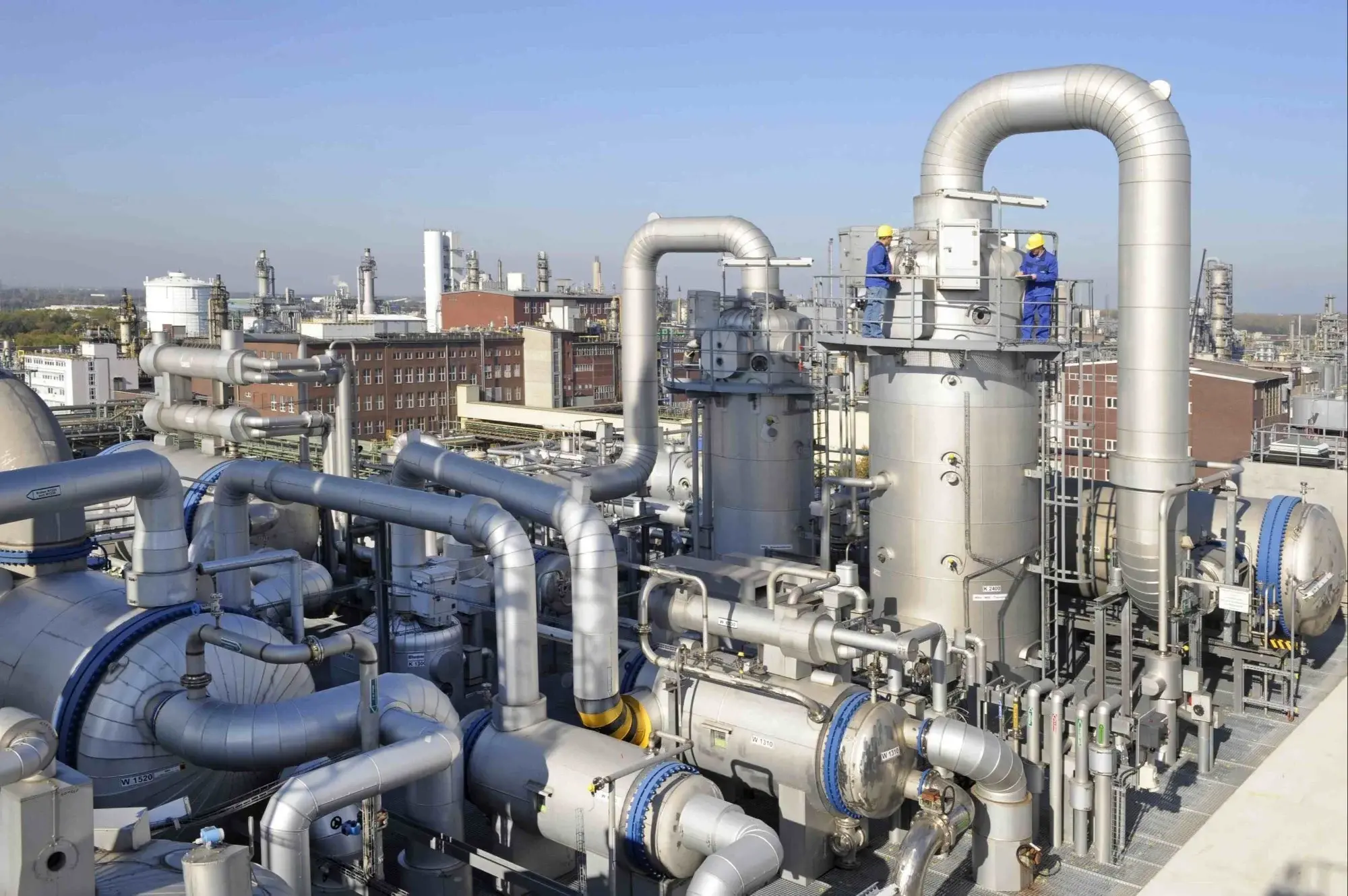

Chemical Industry

Chemical Industry

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

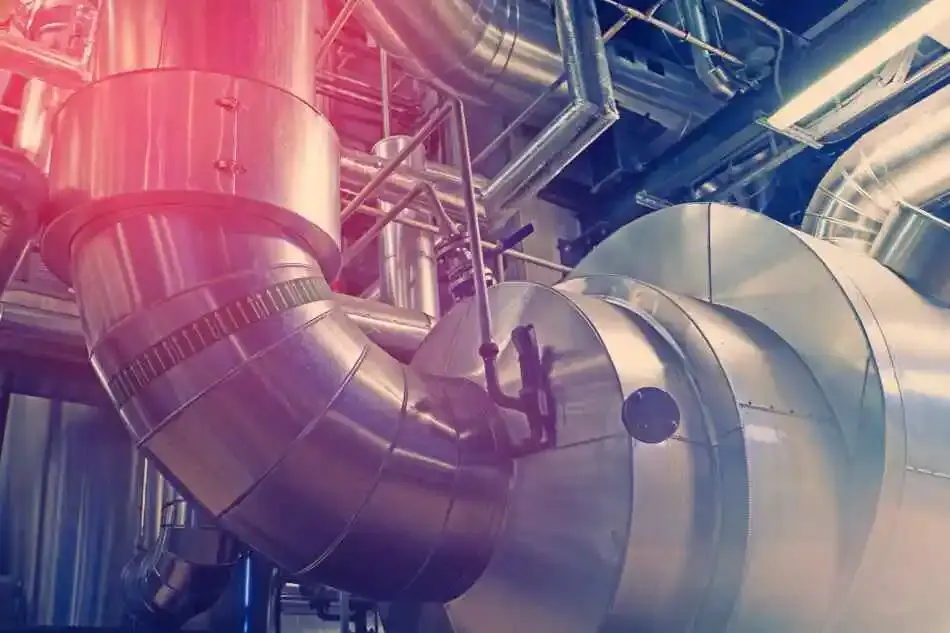

 Sugar Industry

Sugar Industry

Fermentation, Distillation, DM water transfer, Sludge and suspensions, Juice re-circulation, Transfer of sensitive ethanol or alcohol and other Liquids.

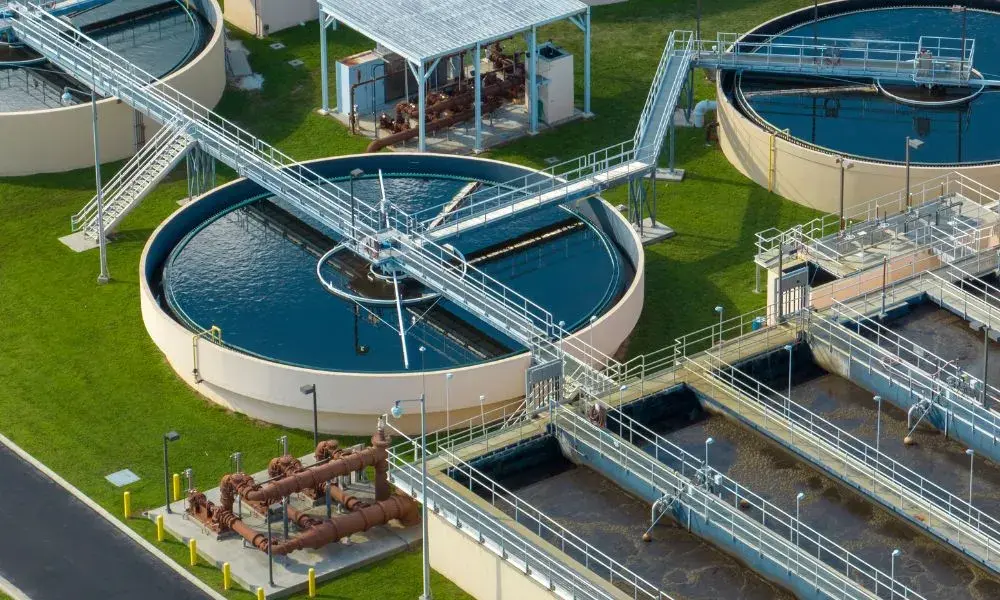

 Oil & Gas Industry

Water treatment and ETP Plants

Deliver uncompromising performance with corrosion-resistant centrifugal pumps

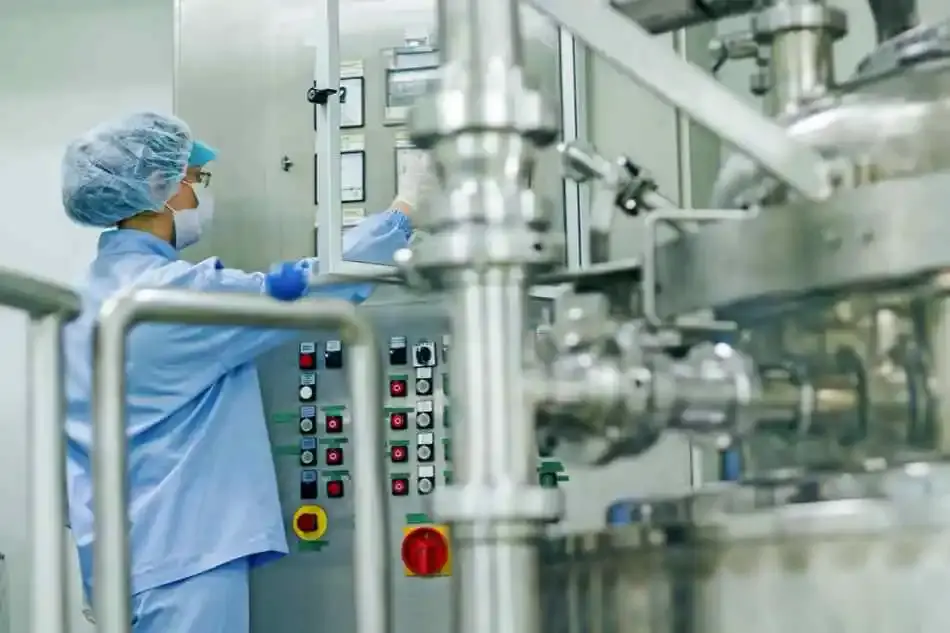

 Pharmaceutical Industry

Pharmaceuticals

Handling of Solvents, Acids & Chemicals.

Cross-section of a metallic pump

Explore the internal components and engineering precision of industrial centrifugal pumps through this interactive technical diagram.

Cross-section of a metallic pump
1
2
3
4
5
6
7
8
9
10

Investment Cast (WAX Loss)

Our precision investment casting process creates high-quality metal components through the lost wax method. This advanced technique ensures superior dimensional accuracy, excellent surface finish, and optimal metallurgical properties for demanding applications.

Wax Making

Wax replicas of the desired castings are produced by injection moulding using a metal die. These replicas are called "patterns".

✓
Injection moulding using precision metal die
✓
Wax replicas called "patterns" for exact casting
Wax Making Process

Customised Pumps Built Exactly To Your Specs

Beyond our standard metallic and non-metallic pumps, we offer comprehensive customization services to enhance pump performance and adapt to your specific operational requirements.

Jacketing Solutions

Larger Jacket cavity Volume for efficient circulation for efficient circulation of heating /cooling media. Circuit breaker Arrangement. Inlet/Outlet Flange Connections. Drain Connection available. Jacketing MOC-MS/SS304/SS316, PFA, PVDF, and FEP as per customer requirements.

Tailor Made Solutions

Customized solutions designed specifically for critical applications with engineering consultation to understand your unique requirements.

Priming Pot Systems

Priming Pot provides self-priming capabilities by allowing horizontal centrifugal pumps to be upgraded to self-priming pumps. Available in MOCs - MS,SS304, SS316,SS316L, Other metals, PP,PVDF, FEP, AND PFA.

Finned Cooler Systems

MOC - Copper. Directly cools Oil for lower bearing operating temperature.Requires minimum cooling water.Corrosion resistant construction.Recommended for temperatures above 171 Deg C.

Center Support Design

Center support design for high temperature application. Centreline Mounted casing. Water cooled casing leg.

Thermal Management

Jacketing Solutions

Enhanced Cavity Design

Proven Results,
Trusted Partners

See how we've helped leading companies optimize their processes, reduce costs, and enhance reliability through precision-engineered pump solutions.

Tailored Solution for Our Needs

Chemitek delivered a tailored solution perfectly aligned with our application needs.

SRF
SRF Ltd.

Trusted Choice for Critical Services

Chemitek centrifugal pumps have become our trusted choice for critical services and have become the go-to solution for ensuring uninterrupted operations.

AI
Aether Industries

Dramatically Cut MTBF

Chemitek process pumps have dramatically cut our MTBF, minimizing downtime and maintenance costs. Highly recommend for their quality.

EI
Excel Industries

Excellent Customer Support

We greatly appreciate Chemitek's dedication to providing excellent customer support and service whenever needed.

GFL
GFL

Drastically Reduced Spares Consumption

Our Spares consumption has been drastically reduced since we started using the Chemitek centrifugal Non-Metallic pump.

AMNS
AMNS India

Solving Critical Challenges

Chemitek's excels in critical & corrosive application reaching evaluated high temperature, solving our challenges where others failed.

AI
Aarti Industries

Tailored Solution for Our Needs

Chemitek delivered a tailored solution perfectly aligned with our application needs.

SRF
SRF Ltd.

Trusted Choice for Critical Services

Chemitek centrifugal pumps have become our trusted choice for critical services and have become the go-to solution for ensuring uninterrupted operations.

AI
Aether Industries

Dramatically Cut MTBF

Chemitek process pumps have dramatically cut our MTBF, minimizing downtime and maintenance costs. Highly recommend for their quality.

EI
Excel Industries

Excellent Customer Support

We greatly appreciate Chemitek's dedication to providing excellent customer support and service whenever needed.

GFL
GFL
Trusted by Industry Leaders:
Contact Form CTA

Ready to Upgrade Your Process Operations?

Since 2009, Chemitek has been innovating horizontal centrifugal pumps with custom-designed solutions that seamlessly integrate into diverse industrial processes.

For immediate assistance, feel free to give us a direct call at +91 98765 43210. You can also send us a quick email at info@chemitek.co.in

Request Custom Pump Quote

Thank you! Your custom pump quote request has been received. Our engineering team will analyze your requirements and get back to you within 24 hours with a tailored solution.
Oops! Something went wrong. Please try again or contact us directly.
Please enter your full name
Please enter your company or industry name
Please enter a valid email address
🇮🇳 +91
Please enter a valid phone number

For immediate assistance, feel free to give us a direct call at +91 98765 43210. You can also send us a quick email at info@chemitek.co.in

You may also be interested in

Explore our comprehensive range of industrial pump solutions designed to complement your operations and optimize your entire production line.

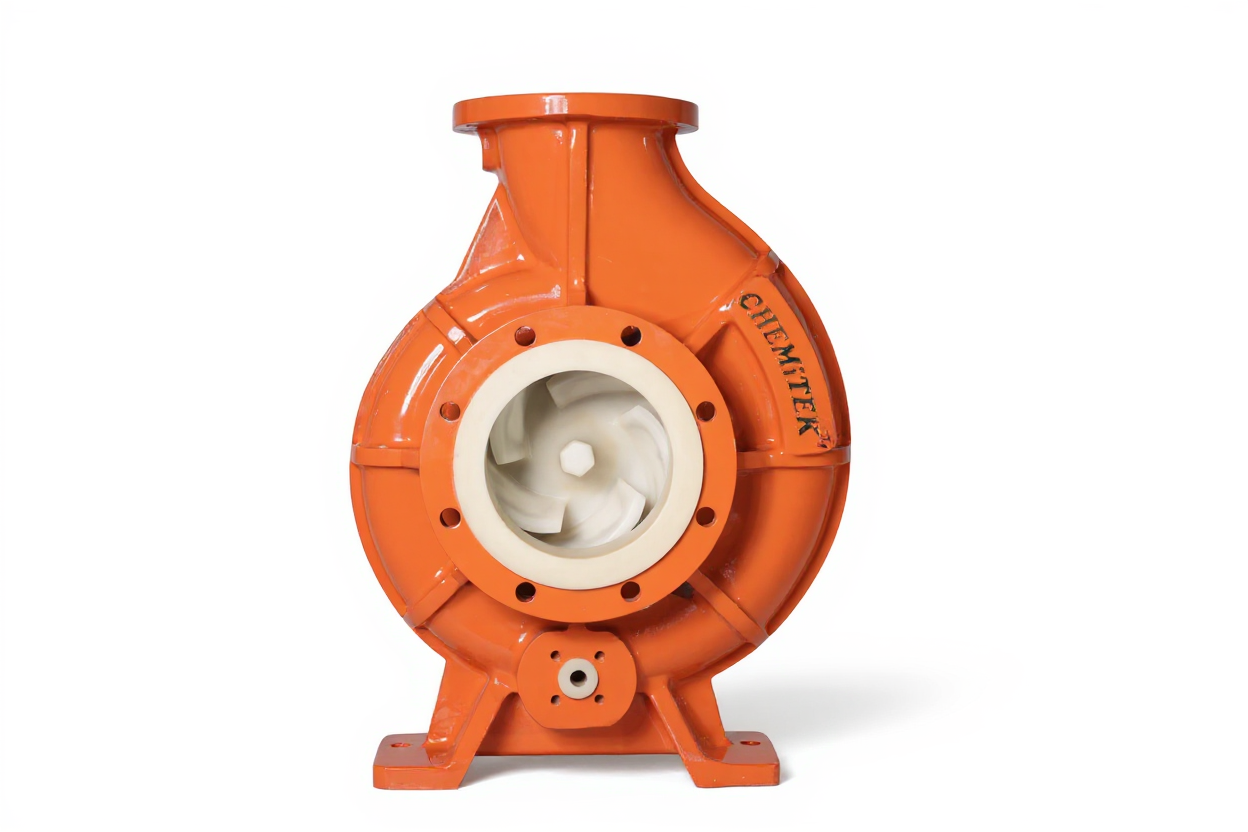

Non Metallic Pump
Chemical Resistant Corrosion-Free
Industrial Grade

Non Metallic Pumps

Advanced composite pump solutions designed for chemical processing, wastewater treatment, and corrosive applications where traditional metal pumps fail.

Feature 100% corrosion resistant materials
Feature Extended service life in harsh conditions
Feature Lightweight composite construction
View Specifications
Pump Installation Services
Professional Service Expert Installation
Certified Technicians

Pump Installation Services

Professional installation and commissioning services ensuring optimal pump performance, proper alignment, and system integration for maximum efficiency.

Feature Certified installation technicians
Feature Complete system commissioning
Feature Performance optimization included
Know More

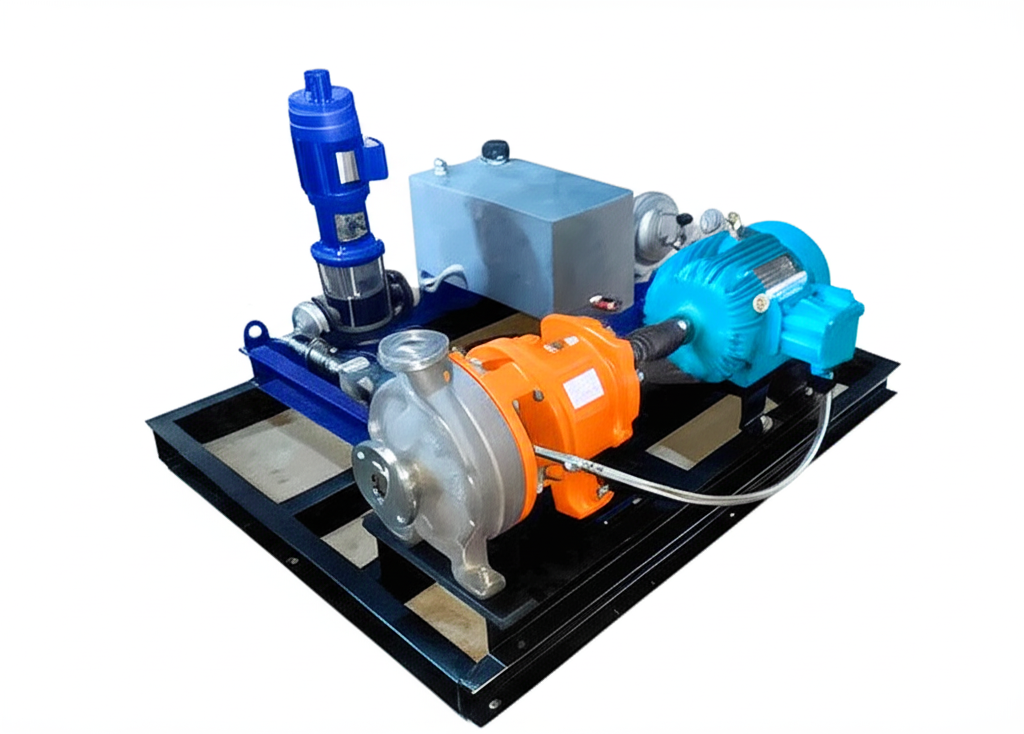

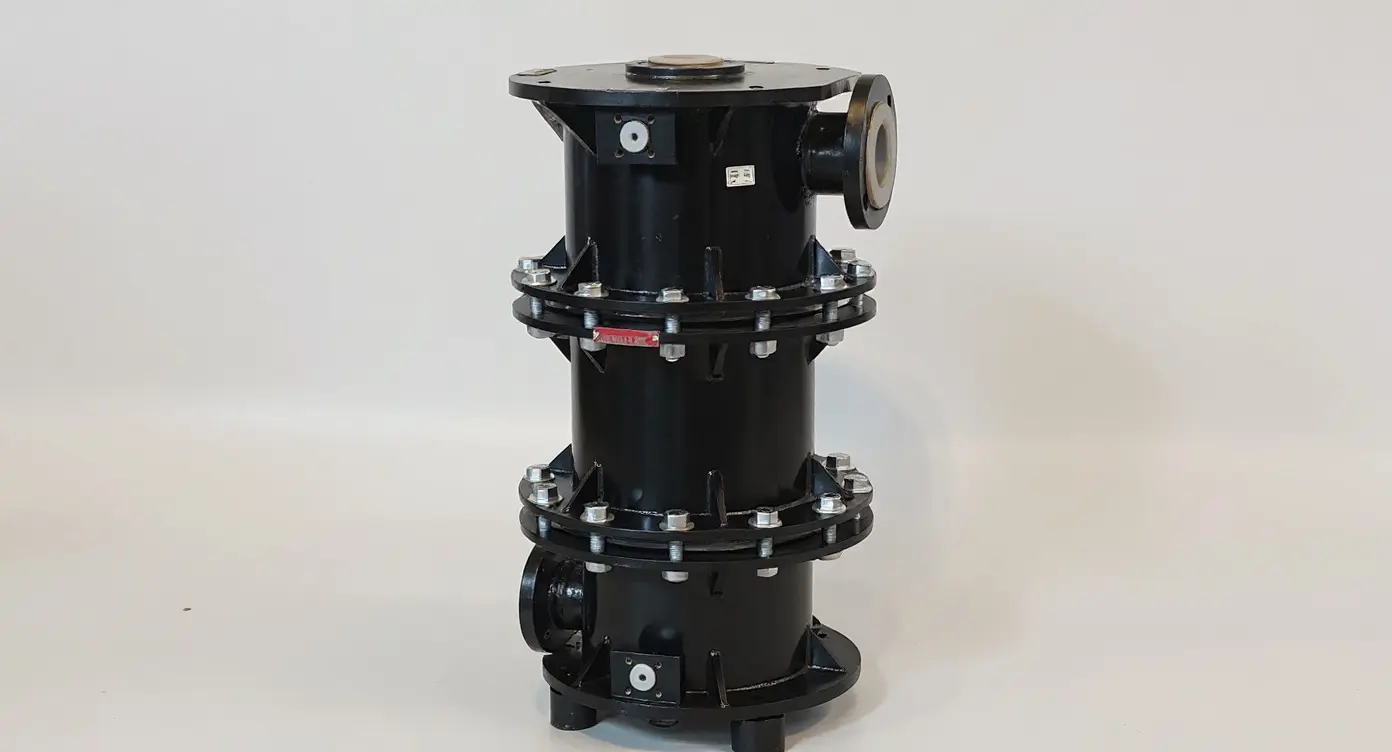

Centrifugal Pump Accessories
