✓ ANSI B73.1 Certified - Trusted by Process Industries

Advanced Non-Metallic Centrifugal Pumps

Conquer your most challenging chemical processes with NM Series pumps engineered in premium fluoropolymers and reinforced polymers. Built to handle corrosive fluids, slurries, and extreme temperatures up to 210°C.

Superior Chemical Resistance
High Temperature Operation
Metal Armor Support
Extended Seal Life

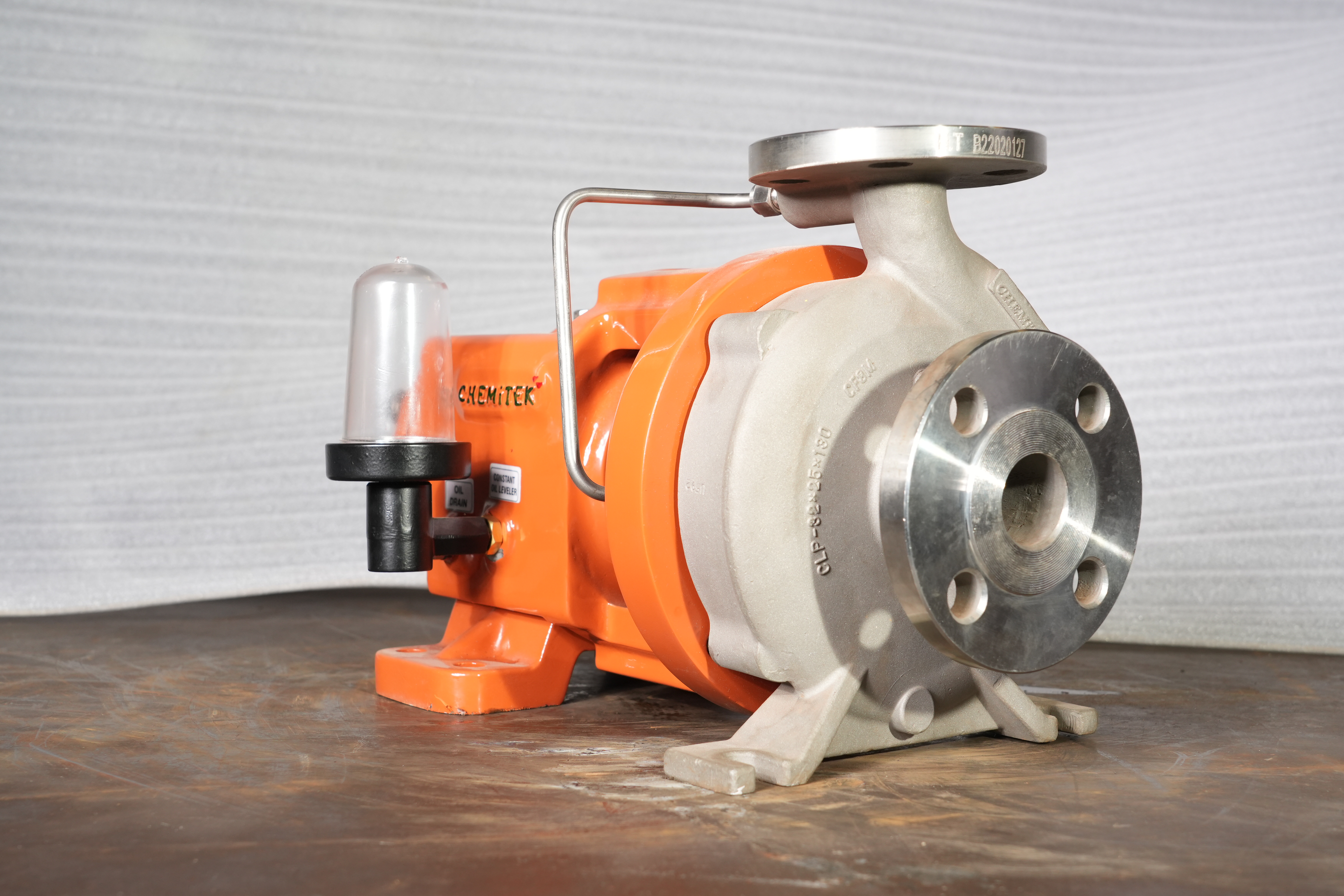

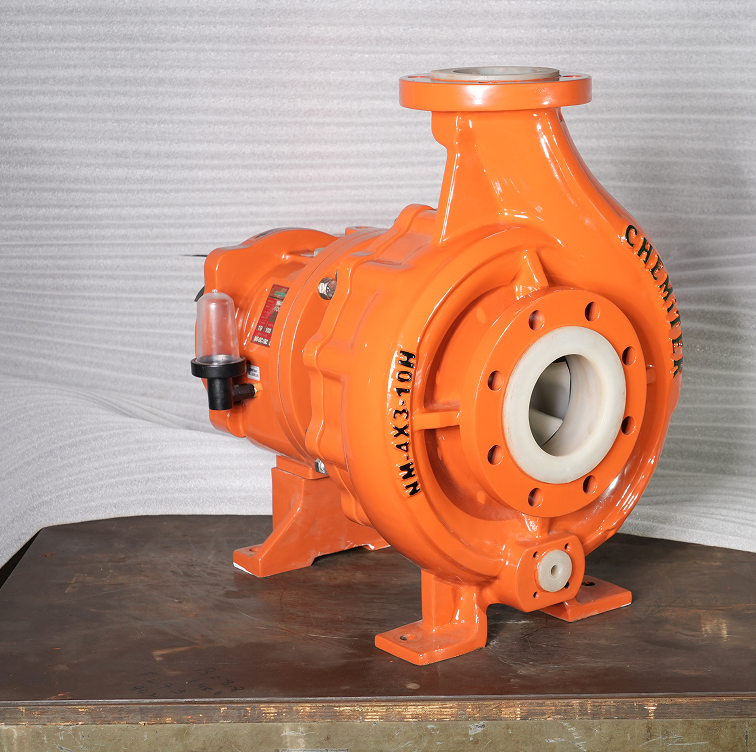

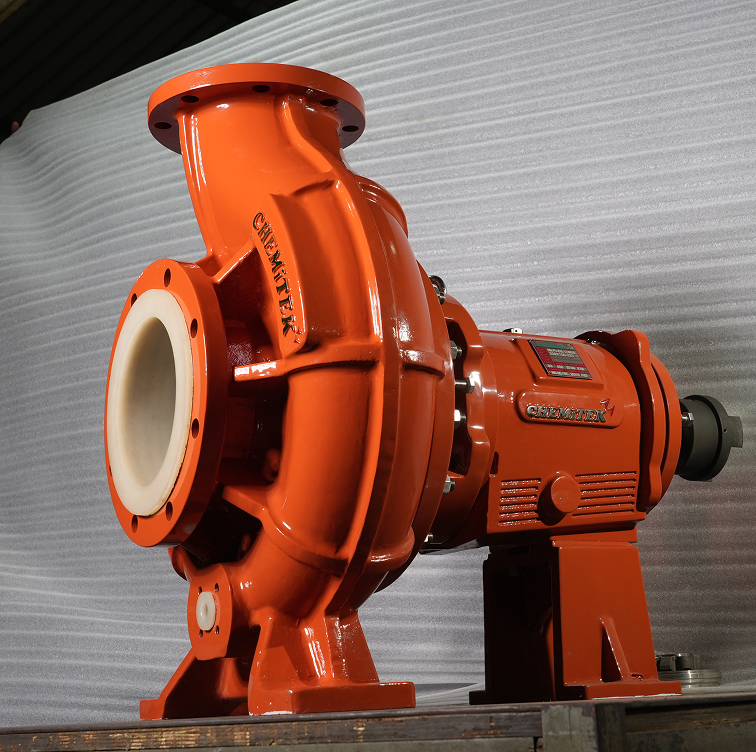

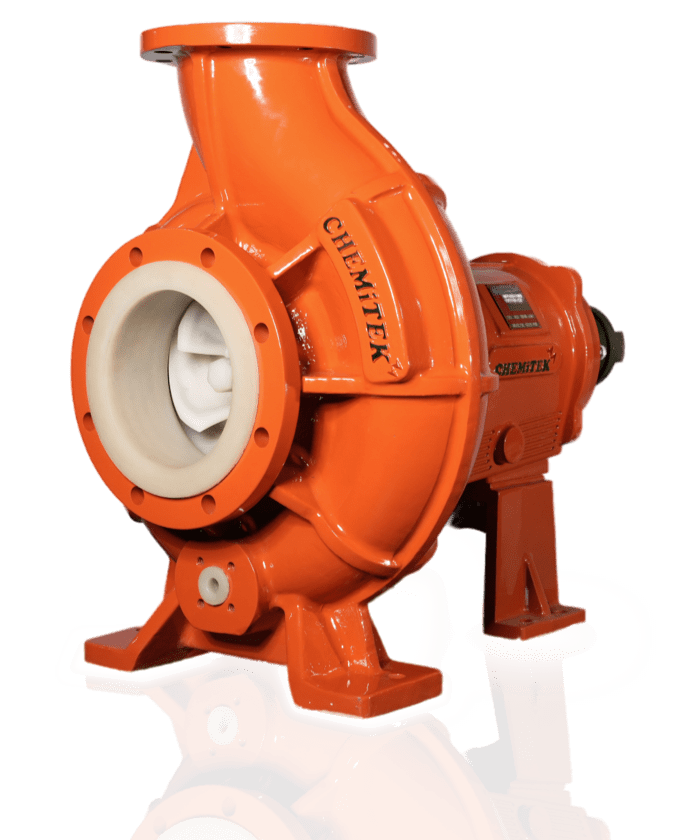

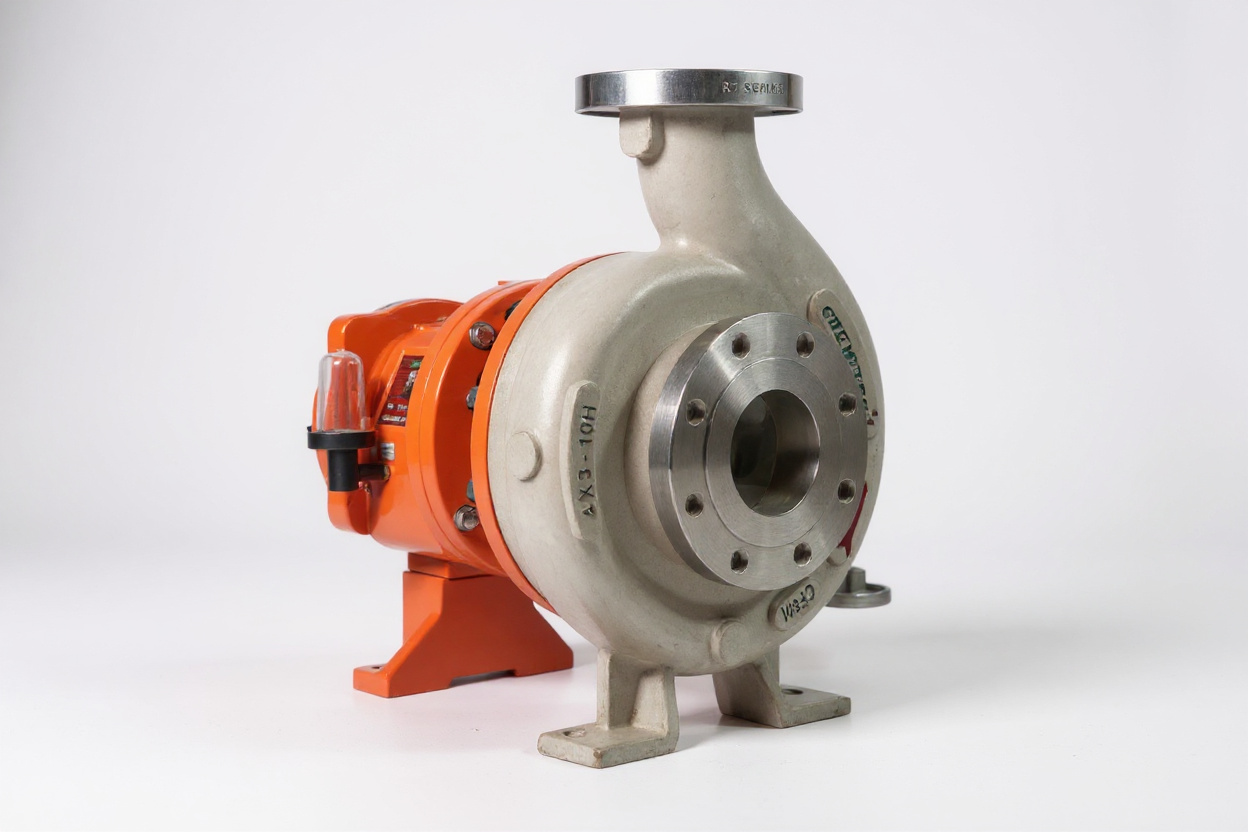

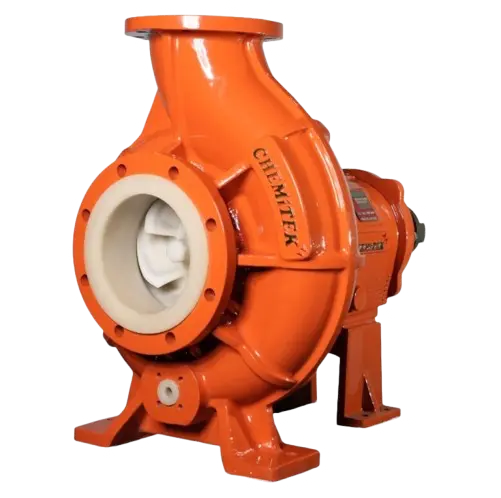

Chemitek NM Series Non-Metallic Centrifugal Pump
1000
M³/HR Max Flow
210°C
Max Temperature
25
Bar Pressure

Get Your Custom Quote

Share your details and our pump specialists will provide a tailored solution for your needs.

Thank you! Your quote request has been submitted successfully. Our team will contact you within 24 hours.

Download Technical Brochure

Get instant access to detailed specifications, performance curves, and technical data for our non-metallic pump range.

Thank you! Your brochure is downloading now. Check your downloads folder.
ANSI/ASME B73.1
ANSI/ASME B73.1
ISO 9001:2015
ISO 9001:2015
ISO 14001:2015
ISO 14001:2015
ISO 45001:2018
ISO 45001:2018

Features & Benefits

Experience the superior engineering of our NM Series non-metallic centrifugal pumps, specifically designed for handling aggressive chemicals and demanding industrial applications. Each feature delivers exceptional performance, reliability, and operational efficiency in the most challenging environments.

ANSI B73.1 Compliance

Meets ANSI/ASME B73.1 dimensional requirements for seamless retrofitting and standardized installation. This compliance ensures dimensional interchangeability with existing equipment, reducing installation time and costs while guaranteeing predictable performance across all pump configurations.

Four Premium Polymer Options

Choose from PVDF, PFA, FEP, or PPH materials specifically selected for optimal chemical compatibility and temperature resistance. Each polymer is sourced from premium manufacturers (Arkema, Daikin, LyondellBasell) to ensure exceptional corrosion resistance and long-term reliability in aggressive chemical environments.

Metal Armor Support System

Thick-walled polymer construction with integrated metal armor provides superior structural integrity and thermal stability. This innovative design ensures strong support especially at elevated temperatures up to 210°C, combining chemical resistance with mechanical strength for demanding applications.

Flow-Optimized Hydraulic Design

Smooth trapezoidal volute casing efficiently converts velocity energy into pressure energy for maximum efficiency. Open impeller design with easy clearance adjustment handles corrosive and abrasive liquids with slurry content up to 40%, while maintaining optimal performance and easy maintenance access.

Universal Internal Mechanical Seal

Robust internal mechanical seal with no metal contact ensures extended seal life and trouble-free operation. Available in single and double seal arrangements with API plan compatibility (52/53A/54/62), thick seal faces for enhanced lifecycle, and semi-cartridge design for easy maintenance and installation.

Customized Pumping Solutions

Pump model and wetted parts specifically selected based on your process requirements for critical applications. Features include telescopic bearing cover design, heavy-duty shaft with maximum 0.05mm deflection, constant oil leveler, and increased oil capacity for superior heat transfer and reliability.

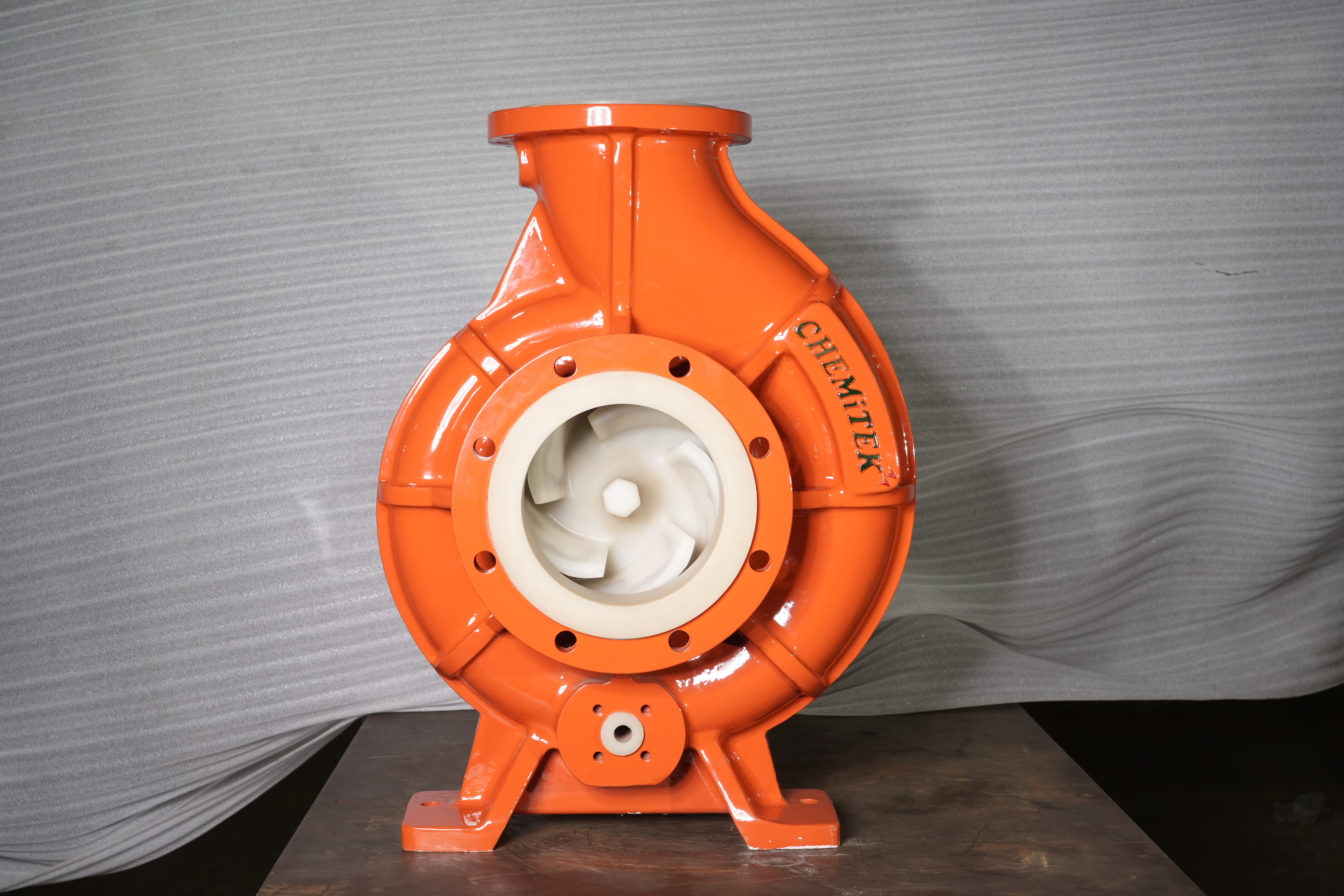

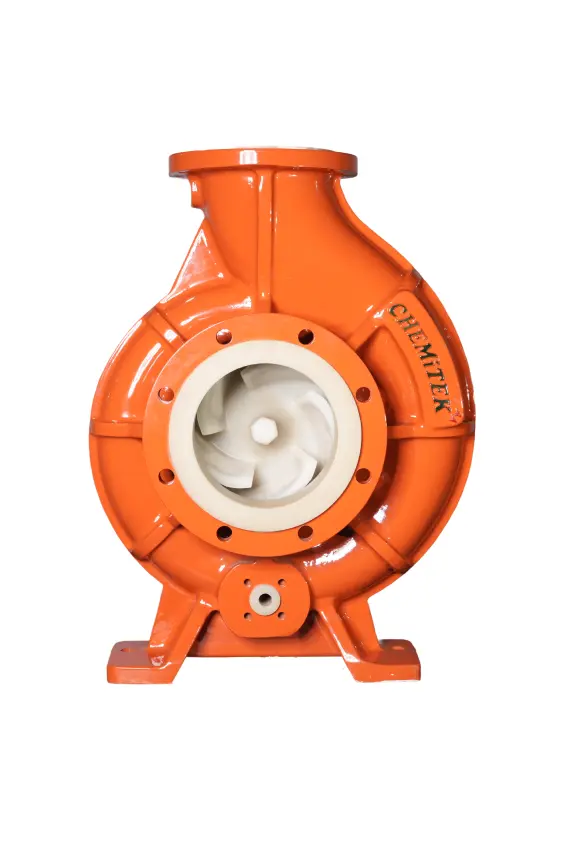

Non-metallic Product

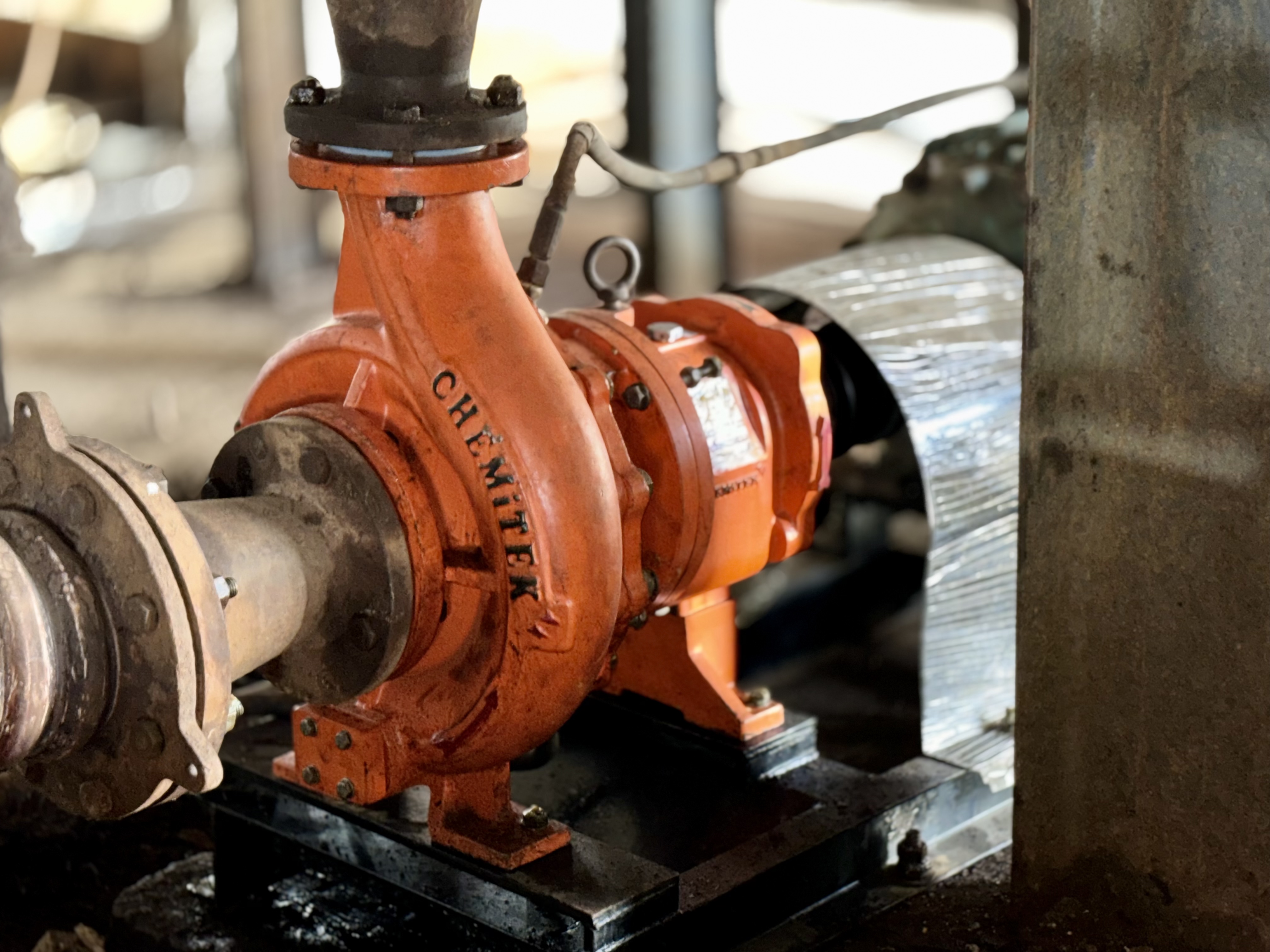

Commercial & Installation
Pump Assembly
Pump Components
TRADEMARKS
Proprietary Technology
PolyGriF™
PolyGriF™ significantly enhances mechanical strength and thermal stability, minimizing plastic deformation under high pressure, temperature, and slurry conditions for extended service life.
TruTrapezoid™
Innovative volute casing design that enhances hydraulic efficiency by reducing turbulence and optimizing flow dynamics in open impeller pumps. TruTrapezoid™ delivers lower energy consumption, reduced wear, and extended maintenance intervals.
PolyPrime™
Advanced fluoro-polymer priming pot technology designed for superior chemical resistance and optimal priming performance. PolyPrime™ ensures reliable pump startup and consistent operation even with the most challenging process fluids.
CorroSmart™
Smart pump technology engineered specifically for corrosive applications in process industries. CorroSmart™ combines intelligent monitoring with advanced materials to deliver unmatched reliability and performance in the most challenging chemical processing environments.
PolyCart™
Advanced internal mechanical seal technology specifically designed for corrosive applications. PolyCart™ provides superior sealing performance and extended service life in harsh chemical environments, ensuring reliable containment and minimal maintenance requirements.

Technical Specifications Overview

Advanced non-metallic pump solutions engineered for superior chemical resistance and optimal performance in demanding industrial applications.

Parameter Specification
Nozzle Size Range 25MM to 250MM (1" to 10")
Maximum Flow Rate 1000 M³/HR (4400 GPM)
Maximum Head 120 M (394 Ft)
Flange Rating ASA 150 / ASA 300
Max. Operating Temperature 210°C (410°F)
Max. Working Pressure 25 KG/CM² (25 BAR / 365 PSI)
Design Standard ANSI/ASME B73.1 Compliant
Impeller Configuration Open / Semi-Open Design
Shaft Sealing Mechanical Seal - Inside Single/Double
Material of Construction
Kynar PVDF
Neoflon PFA
Neoflon FEP
PPH Polypropylene
Premium grade materials from Arkema-USA, Daikin-Japan, and Lyondellbasell-Netherlands

Download Technical Brochure

Get instant access to detailed specifications, performance curves, and technical data for our non-metallic pump range.

Thank you! Your brochure is downloading now. Check your downloads folder.

Proven Performance
Across Critical Industries

Engineered for the most demanding sectors, our pumps deliver precision, reliability, and performance where it matters. From chemical processing, pharmaceuticals, fertilizers, steel and more.

Chemical Industry

Fluorochemicals

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

 Specialty Chemical Industry

Specialty Chemical

Precision pumping for specialty chemicals and fine formulations with exceptional purity and contamination control.

 Steel Industry

Steel Industry

CRM (Cold rolling mills), ARP (Acid regeneration Plants), Pickling, CPL (Continuous Pickling Lines), ETP (Effluent Treatment Plant), Scrubber.

 Chemical Industry

Fertilizer

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

 Chemical Industry

Dyes & Intermediaries

Filter press, Transfer of Slurries without disturbing particle size, ETP.

 Chemical Industry

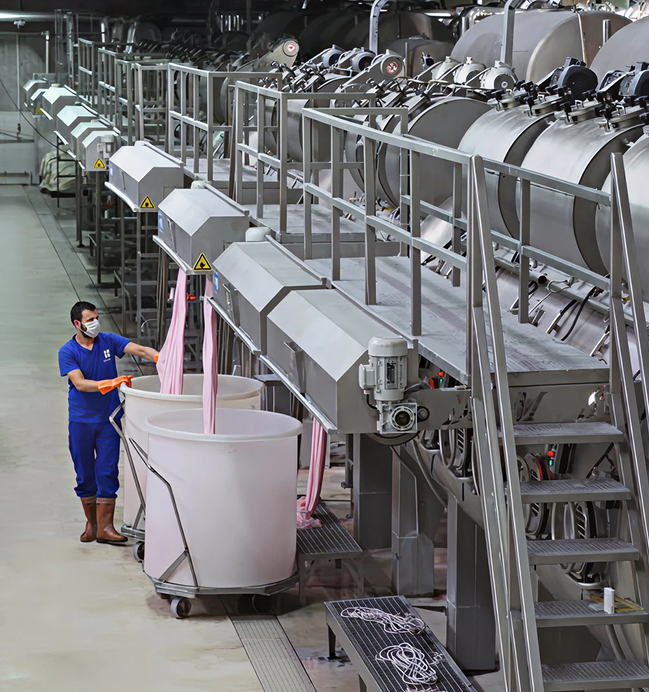

Textile

Master your most critical applications with non-metallic centrifugal pumps engineered for corrosive dye liquors, bleaching agents, and textile chemicals.

Chemical Industry

Chemical Industry

High-performance pumps for corrosive chemicals, acids, and aggressive media handling with superior resistance and reliability.

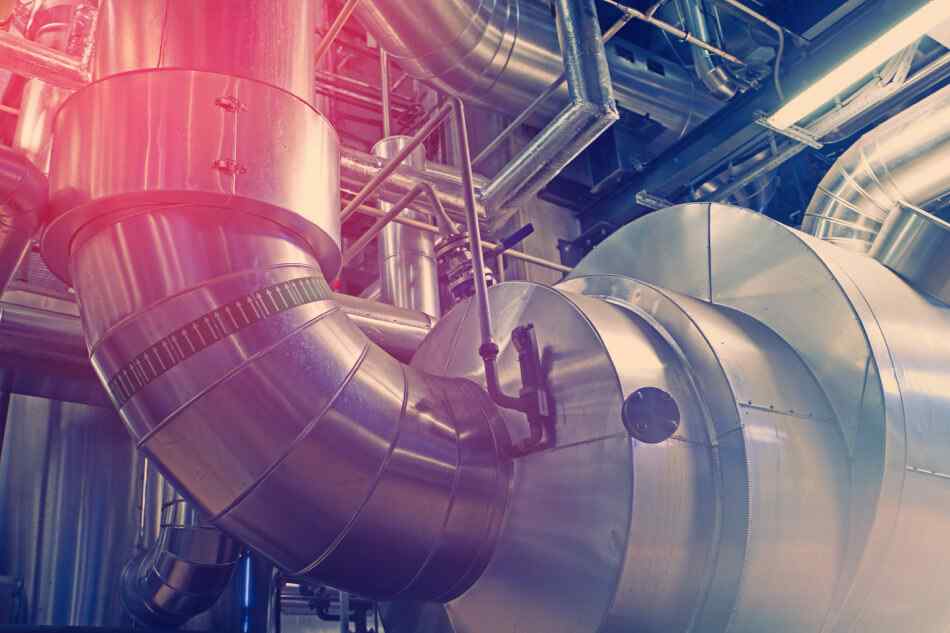

 Sugar Industry

Sugar Industry

Fermentation, Distillation, DM water transfer, Sludge and suspensions, Juice re-circulation, Transfer of sensitive ethanol or alcohol and other Liquids.

 Oil & Gas Industry

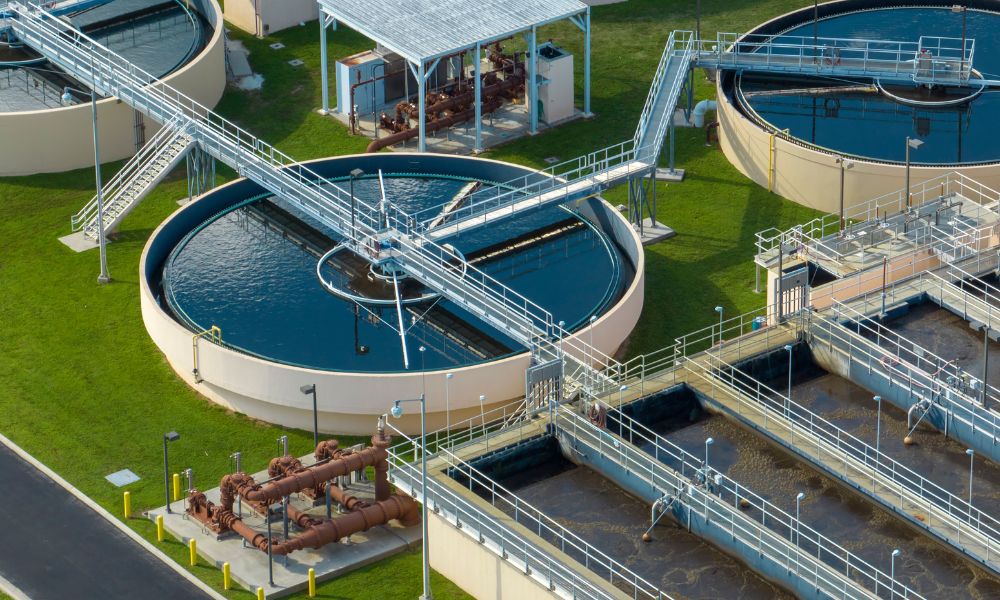

Water treatment and ETP Plants

Deliver uncompromising performance with corrosion-resistant centrifugal pumps

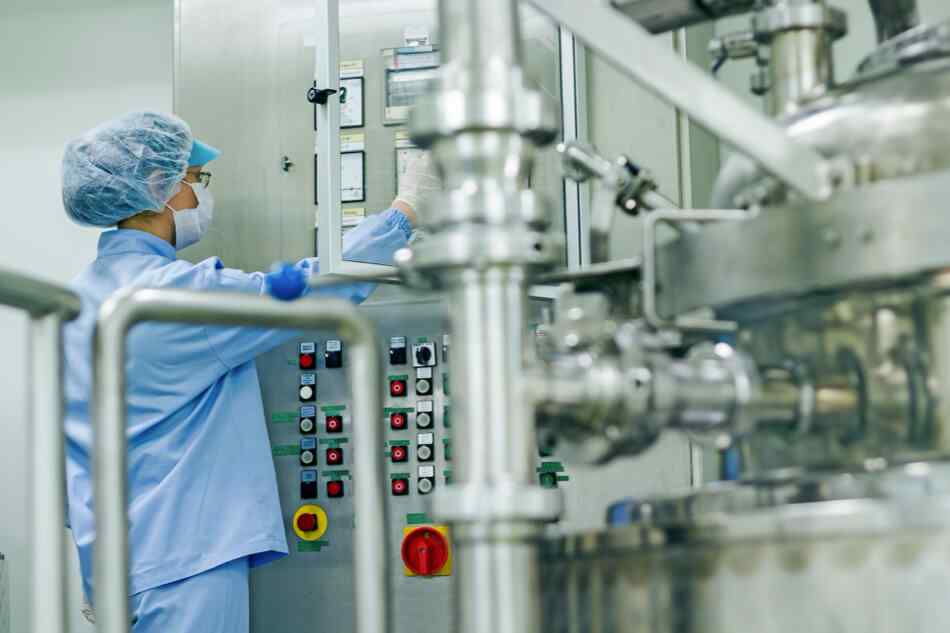

 Pharmaceutical Industry

Pharmaceuticals

Handling of Solvents, Acids & Chemicals.

Cross-section of a Non Metallic Pump

Explore the internal components and engineering precision of industrial non-metallic centrifugal pumps through this interactive technical diagram.

Cross-section of a non-metallic pump
1
2
3
4
5
6
7
8
9

Customised Pumps Built Exactly To Your Specs

Beyond our standard metallic and non-metallic pumps, we offer comprehensive customization services to enhance pump performance and adapt to your specific operational requirements.

Jacketing Solutions

Larger Jacket cavity Volume for efficient circulation for efficient circulation of heating /cooling media. Circuit breaker Arrangement. Inlet/Outlet Flange Connections. Drain Connection available. Jacketing MOC-MS/SS304/SS316, PFA, PVDF, and FEP as per customer requirements.

Tailor Made Solutions

Customized solutions designed specifically for critical applications with engineering consultation to understand your unique requirements.

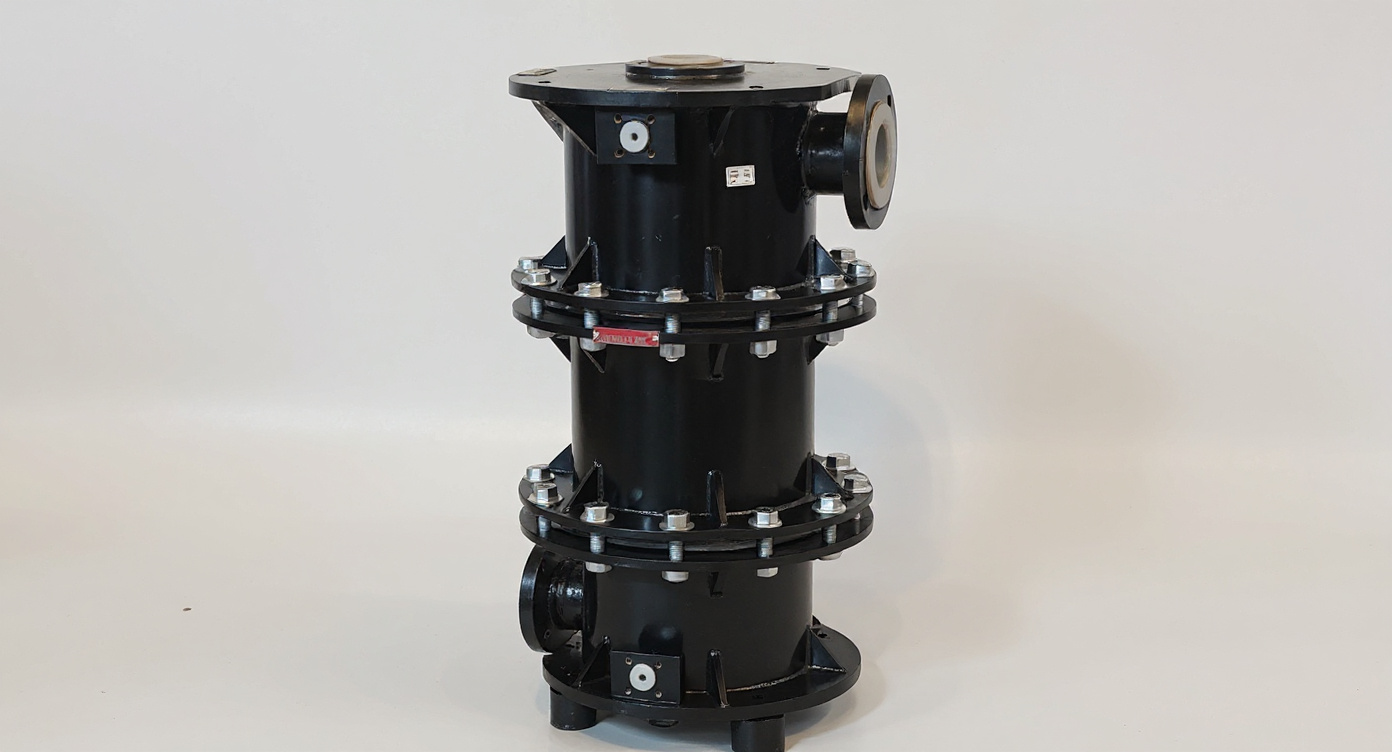

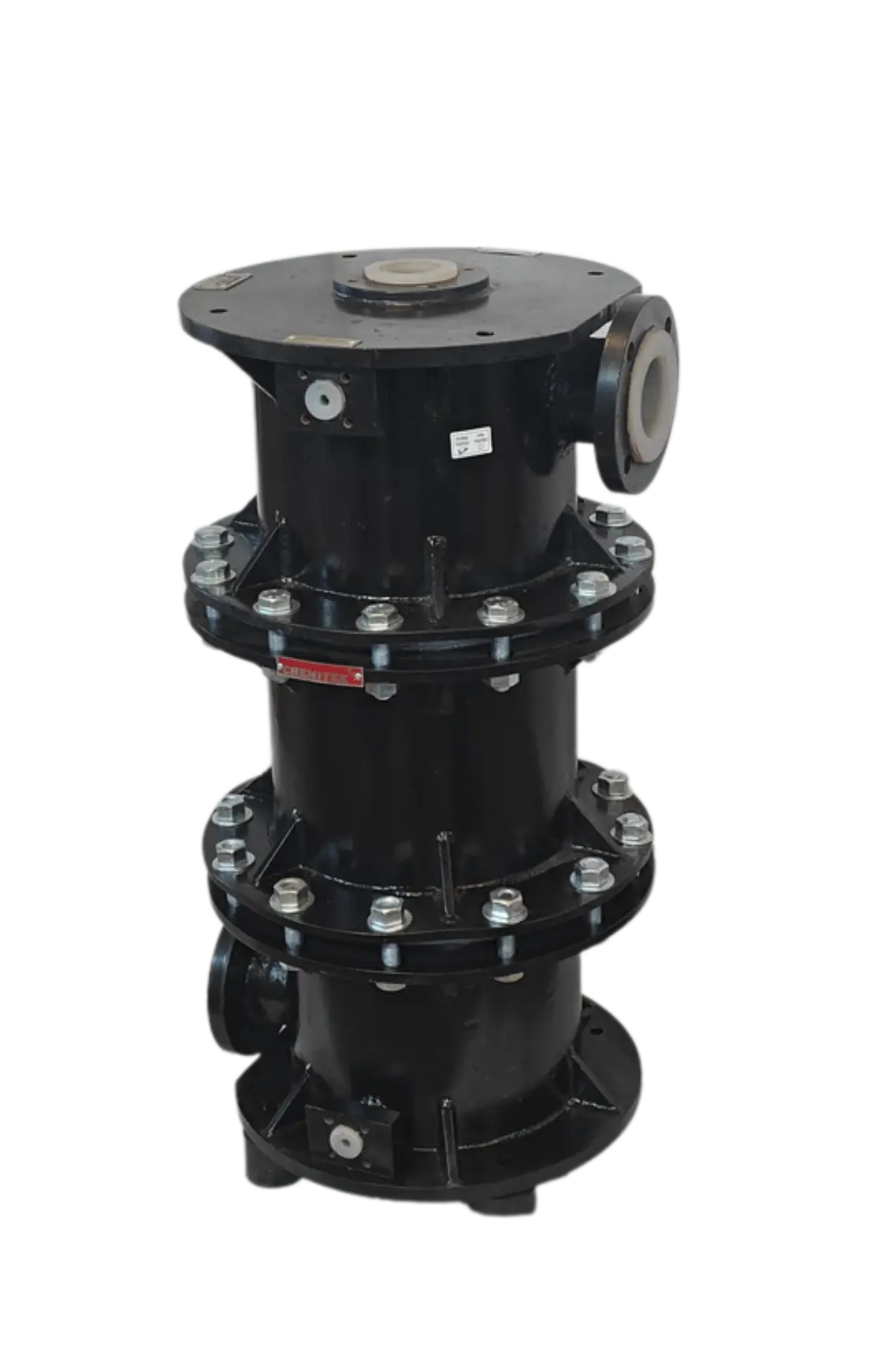

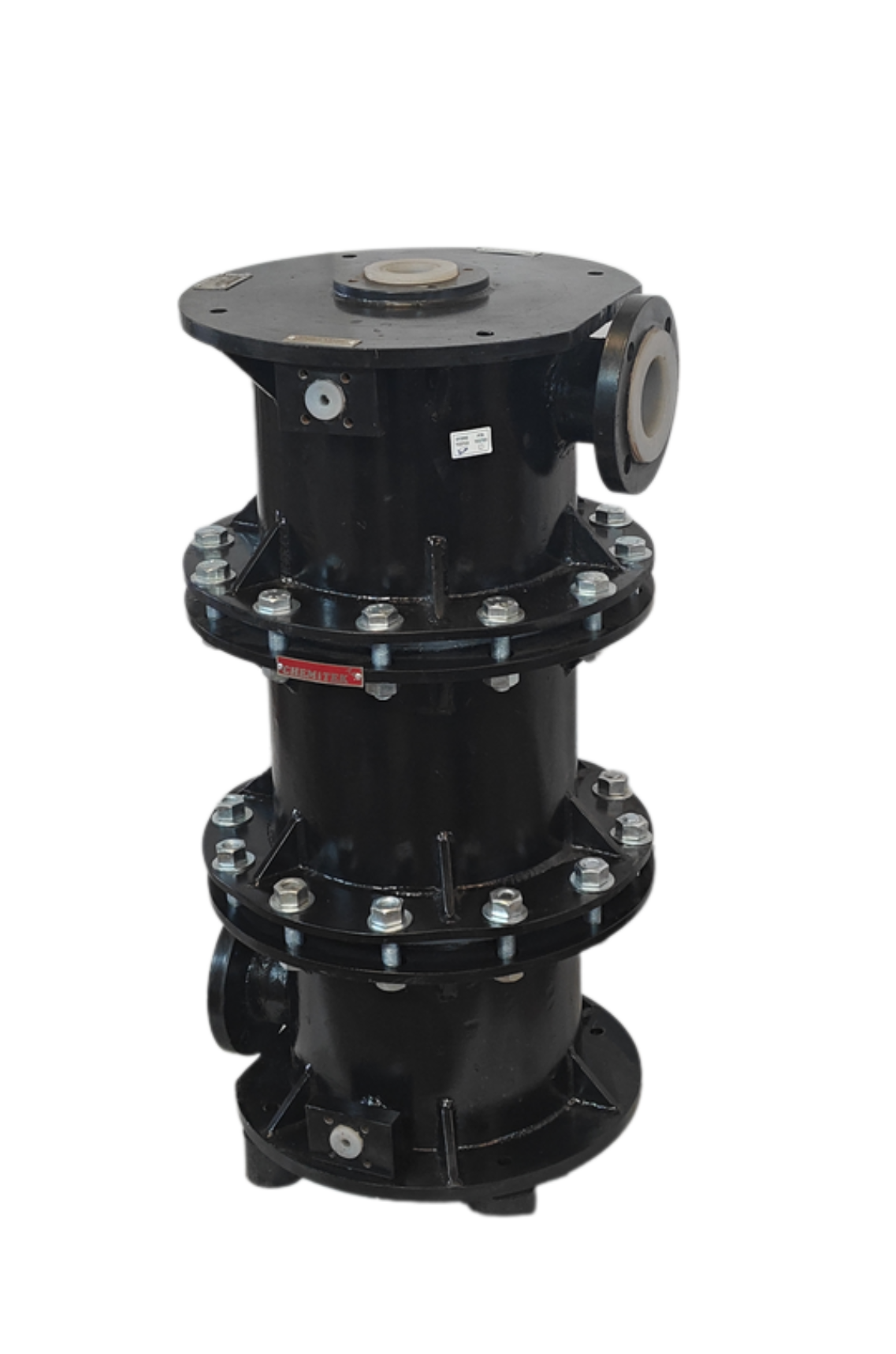

Priming Pot Systems

Priming Pot provides self-priming capabilities by allowing horizontal centrifugal pumps to be upgraded to self-priming pumps. Available in MOCs - MS,SS304, SS316,SS316L, Other metals, PP,PVDF, FEP, AND PFA.

Thermal Management

Jacketing Solutions

Enhanced Cavity Design

Mechanical Seal

Chemitek make Internal Mechanical Seal (IMS) for handling of corrosive and aggressive chemicals has proven its performance in the process Industry. IMS Seals have a comprehensive set of features with ease of fitment.

Enhanced Seal Face Design

Seal faces are designed with thick section to enhance the life cycle and provide superior wear resistance. The robust construction ensures extended operational periods with minimal maintenance requirements, even in the most demanding chemical processing environments.

Superior Heat Dissipation

Primary seal rings are submerged in process liquid to improve heat dissipation and maintain optimal operating temperatures. This innovative design prevents thermal damage and ensures consistent sealing performance across varying process conditions.

Advanced Slurry Handling

Large and tapered seal chamber design effectively pushes slurry particles away from the sealing face through centrifugal action of the rotary face and impeller. Handles slurry content up to 40% while maintaining seal integrity and performance.

Protected Shaft Design

Shaft sleeve is not in contact with process liquid, providing enhanced protection against corrosion and wear. This design significantly extends shaft life and reduces maintenance requirements in aggressive chemical applications.

Flexible Seal Arrangements

Available in single and double seal arrangements to meet diverse application requirements. API Plan compatibility (52/53A/54/62) ensures seamless integration with existing systems and industry standards for optimal performance and reliability.

Easy Maintenance Design

Semi-cartridge design enables easy maintenance and installation with minimal downtime. Operating temperature up to 210°C and working pressure up to 25 kg/cm² (Bar) provide versatile performance across demanding industrial applications.

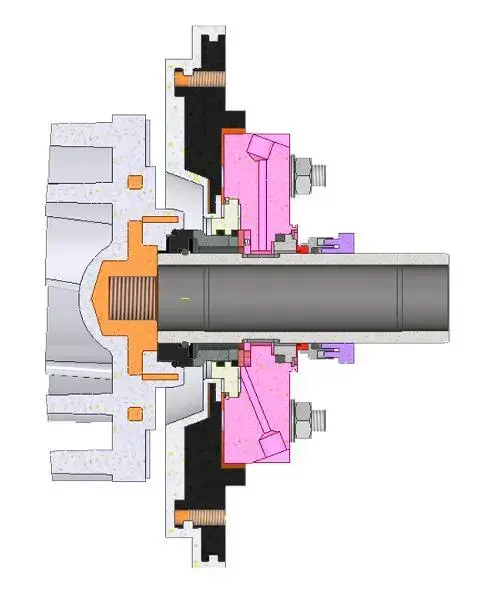

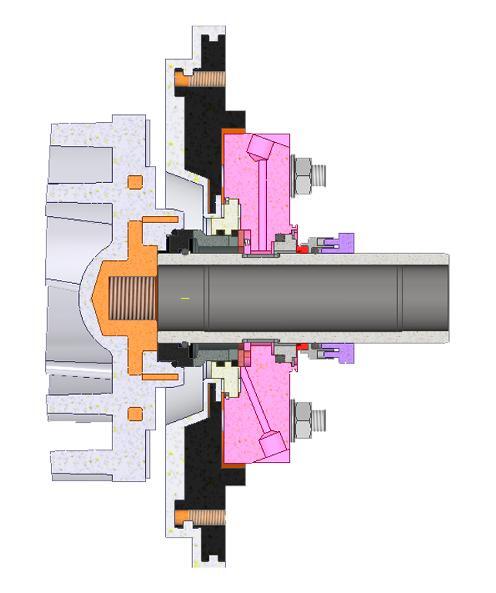

Chemitek Internal Mechanical Seal (IMS)
⚙️

Mechanical Seal

Internal Mechanical Seal for corrosive and aggressive chemicals

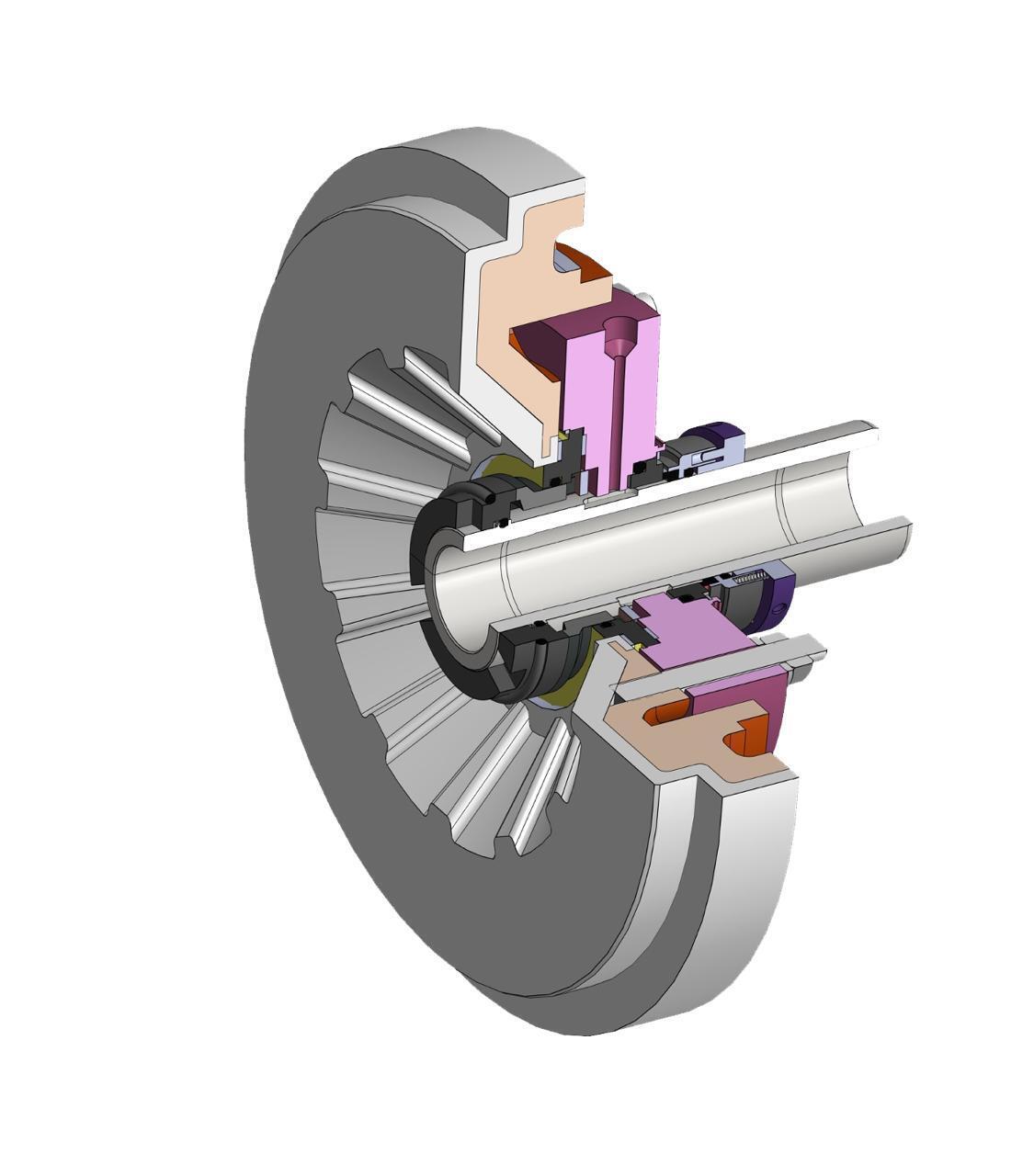

Internal Mechanical Seal (IMS)

Engineered for handling corrosive and aggressive chemicals with proven performance in process industries

Proven Results,
Trusted Partners

See how we've helped leading companies optimize their processes, reduce costs, and enhance reliability through precision-engineered pump solutions.

Tailored Solution for Our Needs

Chemitek delivered a tailored solution perfectly aligned with our application needs.

SRF
SRF Ltd.

Trusted Choice for Critical Services

Chemitek centrifugal pumps have become our trusted choice for critical services and have become the go-to solution for ensuring uninterrupted operations.

AI
Aether Industries

Dramatically Cut MTBF

Chemitek process pumps have dramatically cut our MTBF, minimizing downtime and maintenance costs. Highly recommend for their quality.

EI
Excel Industries

Excellent Customer Support

We greatly appreciate Chemitek's dedication to providing excellent customer support and service whenever needed.

GFL
GFL

Drastically Reduced Spares Consumption

Our Spares consumption has been drastically reduced since we started using the Chemitek centrifugal Non-Metallic pump.

AMNS
AMNS India

Solving Critical Challenges

Chemitek's excels in critical & corrosive application reaching evaluated high temperature, solving our challenges where others failed.

AI
Aarti Industries

Tailored Solution for Our Needs

Chemitek delivered a tailored solution perfectly aligned with our application needs.

SRF
SRF Ltd.

Trusted Choice for Critical Services

Chemitek centrifugal pumps have become our trusted choice for critical services and have become the go-to solution for ensuring uninterrupted operations.

AI
Aether Industries

Dramatically Cut MTBF

Chemitek process pumps have dramatically cut our MTBF, minimizing downtime and maintenance costs. Highly recommend for their quality.

EI
Excel Industries

Excellent Customer Support

We greatly appreciate Chemitek's dedication to providing excellent customer support and service whenever needed.

GFL
GFL
Trusted by Industry Leaders:
Contact Form CTA

Ready to Upgrade Your Process Operations?

Since 2009, Chemitek has been innovating horizontal centrifugal pumps with custom-designed solutions that seamlessly integrate into diverse industrial processes.

For immediate assistance, feel free to give us a direct call at +91 98765 43210. You can also send us a quick email at info@chemitek.co.in

Request Custom Pump Quote

Thank you! Your custom pump quote request has been received. Our engineering team will analyze your requirements and get back to you within 24 hours with a tailored solution.
Oops! Something went wrong. Please try again or contact us directly.
Please enter your full name
Please enter your company or industry name
Please enter a valid email address
🇮🇳 +91
Please enter a valid phone number

For immediate assistance, feel free to give us a direct call at +91 98765 43210. You can also send us a quick email at info@chemitek.co.in
