How to Avoid Cavitation in Pumps: Practical Fixes That Actually Work in the Field

In an aluminium refinery on Australia’s east coast, a slurry pump that should have run for five years was pulled from service after just 18 months. The cause wasn’t a manufacturing defect. It wasn’t even operator error. It was cavitation, a process so deceptively quiet in its early stages that by the time it’s noticed, the damage is irreversible. Scenarios like this play out across industries more often than most operators realise.

Cavitation occurs when localised pressure in a liquid drops below its vapor pressure, forming tiny vapor bubbles. These bubbles collapse violently as they move into higher-pressure zones, generating shockwaves strong enough to pit stainless steel. Left unchecked, the process eats away at impellers, casings, and seals, silently eroding both performance and profitability.

For operators, the goal is clear: understand how to avoid cavitation in pumps before it becomes the reason you’re scheduling unplanned downtime.

Key Takeaways:

• Cavitation is rarely random; it’s the result of mismatched pump specifications, system layout flaws, or shifts in process conditions.
• The real cost isn’t the repair bill; it’s the unplanned downtime that can wipe out weeks of production.
• Prevention starts at design: match NPSH margins to your worst-case operating conditions, not just nameplate performance.
• Early detection tools like ultrasonic scanning or vibration trending can spot damage months before efficiency drops.
• In high-risk environments, combine hydraulic fixes with material upgrades or protective coatings to extend service intervals from months to years.

‍

Why Cavitation Happens: Often a Convergence, Not Just One Failure

Cavitation is often blamed on low net positive suction head (NPSH), but in reality, it’s rarely caused by a single variable. In the field, damage usually accelerates when several conditions converge.

Typical triggers include:

• Poor inlet conditions: Long horizontal runs, undersized piping, or excessive elbows and fittings before the pump increase friction losses and reduce inlet pressure.
• Fluid temperature near boiling point: In hot-water loops or chemical processes, even small pressure drops can push the fluid into vapor phase.
• Oversized impellers or high rotational speeds: These create extreme pressure drops at the impeller eye, making vapor formation more likely.
• Air leaks upstream: Worn seals, loose fittings, or gasket failures introduce turbulence and pressure fluctuations that disrupt smooth flow.

‍

The U.S. Department of Energy recounts a case where poorly timed check valves created backpressure in the suction line. This backpressure caused microscopic recirculation right at the pump inlet, disturbing the incoming flow.

The turbulence led to localized pressure drops, pushing the fluid below its vapor pressure and creating vapor bubbles. As those bubbles collapsed inside the impeller, they gradually eroded the metal even though the pump was otherwise correctly specified for the job.

Often, it’s not one of these issues but two or three acting together that cause early cavitation damage. Identifying the combination at play in your system is the first step toward preventing it.

Spotting Cavitation Before It Eats Your Pump

Cavitation doesn’t announce itself with flashing warning lights. By the time you see visible pitting on the impeller, the damage is already done. The key is catching it before it reaches that stage.

How do you know if your pump is cavitating?

• The sound of trouble: Operators often describe it as “gravel rattling in the pump” or a low rumbling that shouldn’t be there.
• Vibration spectrum changes: Cavitation introduces high-frequency spikes in vibration readings that differ from standard imbalance or misalignment signatures.
• Performance drift: Watch for unexplained drops in flow or head without changes in system demand.

‍

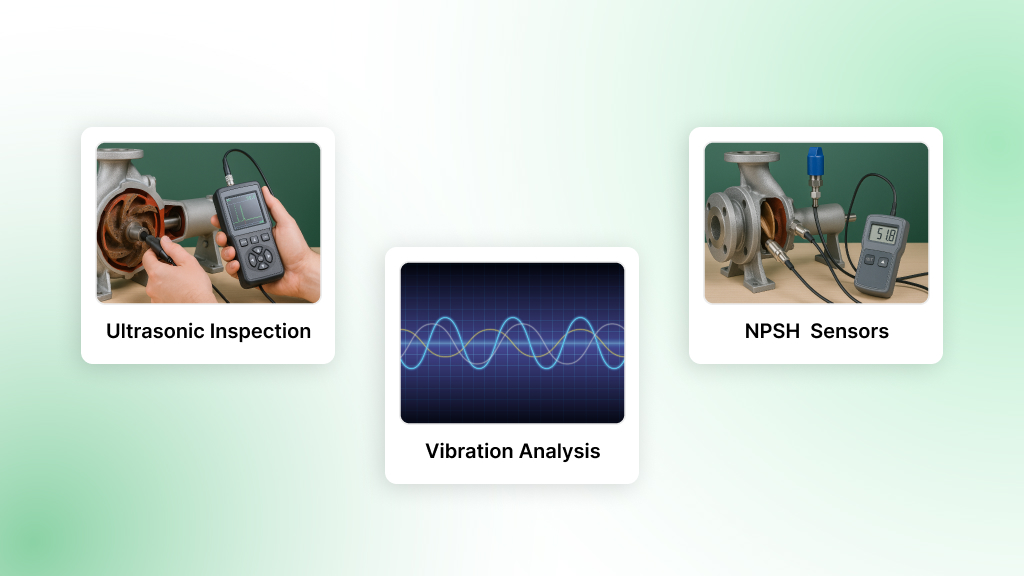

Early Detection Tools That Work in the Field:

Ultrasonic Inspection

Uses handheld or permanently mounted sensors to detect high-frequency signals generated by collapsing vapor bubbles well before the damage becomes visible.

Technicians can scan around the suction flange, volute, and bearings to pinpoint trouble zones.

Vibration Analysis

Cavitation produces a distinct vibration profile, random broadband noise, and sidebands different from imbalance, misalignment, or bearing wear. By trending vibration data over time, maintenance teams can spot a rising cavitation signature and correlate it with changes in process conditions.

Many reliability programs now combine vibration monitoring with condition-based maintenance to avoid mid-cycle failures.

NPSH Monitoring Sensors

These sensors continuously measure suction pressure and liquid temperature, calculating the available Net Positive Suction Head (NPSHa) in real time. If the NPSHa approaches the pump’s NPSH required (NPSHr), alarms or automated control adjustments can prevent the onset of cavitation.

This is especially valuable in variable-load systems, where process fluctuations can unexpectedly push pumps into the danger zone.

Field Note: A robust study published in Processes reviewed cavitation detection techniques across signal types. It found that acoustic emission (AE) methods with sensors placed near the impeller proved highly effective in detecting early-stage cavitation. Notably, researchers were able to flag cavitation before the pump’s head dropped by even 3%, a warning margin that gives operators valuable time to intervene.

Catching cavitation early isn’t about saving a few pennies; it’s about avoiding costly downtime, extended damage downstream, and emergency replacements. Running your diagnostic tools proactively lets you plan maintenance, not scramble for containment.

Field-Proven Ways to Prevent Cavitation (Solution Matrix)

Once cavitation takes hold, the only real cure is to repair or replace damaged components, and that’s expensive. The smarter move is to design and operate your system so vapor bubble formation never starts in the first place.

Use this quick-reference guide to match the cause with proven fixes that work in the field.

Why this works:

• Design-level fixes increase your cavitation margin before the pump ever starts.
• Operational adjustments keep your pump in the safe zone under real process fluctuations.
• Protective measures buy time in high-risk services where some cavitation is unavoidable.

‍

Pro tip: Pair at least one hydraulic fix (e.g., increase NPSHa) with one protective measure (e.g., ceramic coating) for maximum service-life gains.

Even the best hydraulic fixes can’t fully eliminate cavitation risk in certain services, especially where high temperatures, abrasive solids, or variable loads are part of daily operations.

In those cases, the right material and design choices become your second line of defense, ensuring that if cavitation does occur, it does far less damage. That’s where smart material upgrades and design tweaks become your next line of defense.

Material & Design Choices That Resist Cavitation Damage

When cavitation can’t be entirely prevented, the battle shifts from “stop it from happening” to “make sure your pump can survive it.” This is where material science and smart design earn their keep.

Why material selection matters:

The implosion of vapor bubbles can create impact forces exceeding 10,000 psi on metal surfaces. Over time, even hardened stainless steel will pit, crack, and lose efficiency.

By upgrading to cavitation-resistant materials or surface treatments, you can significantly extend service life without changing the pump’s hydraulic performance.

Comparative Overview of Cavitation-Resistant Materials

Material upgrades work best when paired with hydraulic improvements. A ceramic coating will last longer, but it won’t save a pump from rapid failure if NPSHa is chronically below NPSHr.

The same principle applies to installation and operation strong materials can only deliver their full service life if the pump is set up and run within its optimal range. In fact, many cavitation problems that seem “mysterious” in failure reports ultimately trace back to how the pump was installed or managed day-to-day.

That’s why installation and operational discipline are just as critical as the hardware itself.

Installation & Operational Practices That Make or Break Prevention

Think of this as the “daily discipline” that protects all the design and material investments you’ve made. A well-installed pump, operated within its intended envelope, will naturally resist cavitation. A poorly aligned or mismanaged one will undo even the most expensive upgrades.

Checklist for Cavitation-Free Operation:

• Align and Level the Pump Properly: Misalignment increases shaft deflection and vibration, which can worsen cavitation damage. Verify alignment after installation, and re-check after the first 100 hours of operation.
• Keep Suction Strainers Clean: Even partial clogging increases inlet friction losses, reducing NPSHa. A 10% blockage can be enough to trigger cavitation in borderline systems.
• Avoid Unnecessary Discharge Throttling: Operating too far from the Best Efficiency Point (BEP) increases turbulence and low-pressure zones at the impeller eye.
• Control Operating Speed: Overspeeding dramatically increases the velocity at the impeller eye, dropping local pressures below vapor pressure.
• Stabilize Suction Conditions: In systems with fluctuating loads, consider adding a surge tank or variable-speed drive to maintain stable inlet pressures.
• Maintain Seal Integrity: Even small gasket or packing leaks can draw in air, adding to turbulence and cavitation risk.
• Start-Up and Shut-Down Discipline: Avoid “dry starts” and ensure valves are in the correct position before bringing the pump online.

Treat commissioning as the first line of defense against cavitation. Document baseline vibration, flow, and NPSH readings during start-up. These give you a reference to detect early deviations months or years later.

But even with the best practices in place, reality isn’t perfect. If cavitation does sneak in, the priority shifts from prevention to damage control.

When Cavitation Is Already Happening: Stopping the Damage Escalation

Once cavitation damage starts, the clock is ticking. The right intervention depends on how advanced the problem is and how quickly you can act.

1. Minor Damage: Light pitting, a faint rumble in the bearings, but flow and head are steady.

Balance the impeller, patch with epoxy, and recoat with a protective lining. This can often buy you 6–12 more months of reliable service without a major teardown.

2. Recurring Damage: The same pitting and vibration patterns keep returning in less than a year.

You’ve got a system issue, not just a part issue. Reroute suction piping to smooth flow, increase NPSHa, or trim the impeller to reduce pressure drop. Fixing the root cause here can extend overhaul intervals by years, not months.

3. Severe Damage: Large impeller sections missing, casing cracks, and a steep drop in performance.

Replace with upgraded alloys, ceramic coatings, or polymer liners. If you align this with a planned outage, you avoid emergency downtime and get a fresh service cycle from day one.

Quick fixes are just that: quick. They buy time, but they don’t change the fact that the same conditions will eat away at your pump again.

Preventing cavitation takes more than good intentions; it takes engineering precision from day one. That’s why plants that rarely face cavitation partner with companies like Chemitek, which build prevention into every stage of pump design and operation

How Chemitek Helps Make Reliability Repeatable

Chemitek supports robust pump systems from design through long-term operation:

• Custom Design Engineering:  Chemitek engineers craft pumps finely tuned to your fluid, temperature, pressure, and corrosive environment needs. Every alloy, impeller design, and sealing system is selected to give your system a fighting chance against cavitation and wear.
• Advanced Manufacturing: Whether it’s precision investment-cast stainless or engineered polymer casings, Chemitek’s manufacturing delivers durability without compromise. Our constructions meet ANSI/ASME B73.1 and ISO standards, built to last when others fail.
• End-to-End Support: From installation oversight to proactive maintenance programs, Chemitek stays involved. Our commissioning, training, and service teams support your operators so the pumps run at optimal efficiency for longer.
• Proven Reliability Across Industries: Operators report dramatic reductions in MTBF, dramatically lowered spares consumption, and enhanced uptime even under aggressive conditions.

‍

Chemitek doesn’t just supply pumps; it engineers reliability into your process, turning cavitation from a constant maintenance worry into a problem you rarely think about.

Conclusion

Cavitation isn’t just a maintenance issue; it’s a profit leak. Every unplanned shutdown, every premature impeller change, and every drop in efficiency is money lost. The plants that win against cavitation don’t gamble on quick fixes; they engineer it out from the start, monitor continuously, and upgrade strategically when conditions demand it.

With Chemitek’s design expertise, precision manufacturing, and lifetime operational support, you’re not just buying a pump; you’re securing years of dependable service in the harshest conditions.

Talk to Chemitek’s engineering team today and turn your cavitation challenges into a long-term reliability success story.

‍

FAQs

1. What is the fastest way to detect cavitation in an operating pump?

The quickest on-site method is listening for the “gravel-in-the-pump” sound and checking vibration signatures for high-frequency noise spikes. For precision, ultrasonic sensors or real-time NPSH monitoring can detect cavitation weeks before performance loss occurs.

2. Can cavitation be completely eliminated?

In most services, yes, if the pump is correctly specified, installed, and operated. In extreme-duty applications (abrasive slurries, high temperatures, variable loads), cavitation risk can be reduced to minimal, manageable levels with the right hydraulic design and cavitation-resistant materials.

3. How much NPSH margin should I maintain to avoid cavitation?

A safe practice is to keep your available NPSH (NPSHa) at least 1 metre above the pump’s required NPSH (NPSHr) under worst-case operating conditions, not just average ones.

4. Does changing the impeller help in cavitation control?

Yes. Trimming the impeller or switching to a different vane design can reduce pressure drop at the eye, lowering cavitation risk. This is most effective when paired with system-level fixes like improved suction piping.

5. What’s the difference between suction cavitation and discharge cavitation?

• Suction cavitation happens when the inlet pressure drops below vapor pressure, forming bubbles that collapse inside the impeller.
• Discharge cavitation occurs when high discharge pressure forces fluid to recirculate within the pump, causing localized low-pressure zones and bubble formation. Both require different fixes.

‍

6. How does Chemitek help prevent cavitation long-term?

Chemitek integrates cavitation prevention into pump design, manufacturing, and maintenance programs. This includes selecting optimal hydraulics, using cavitation-resistant materials, ensuring proper installation, and supporting operators with preventive maintenance plans.
