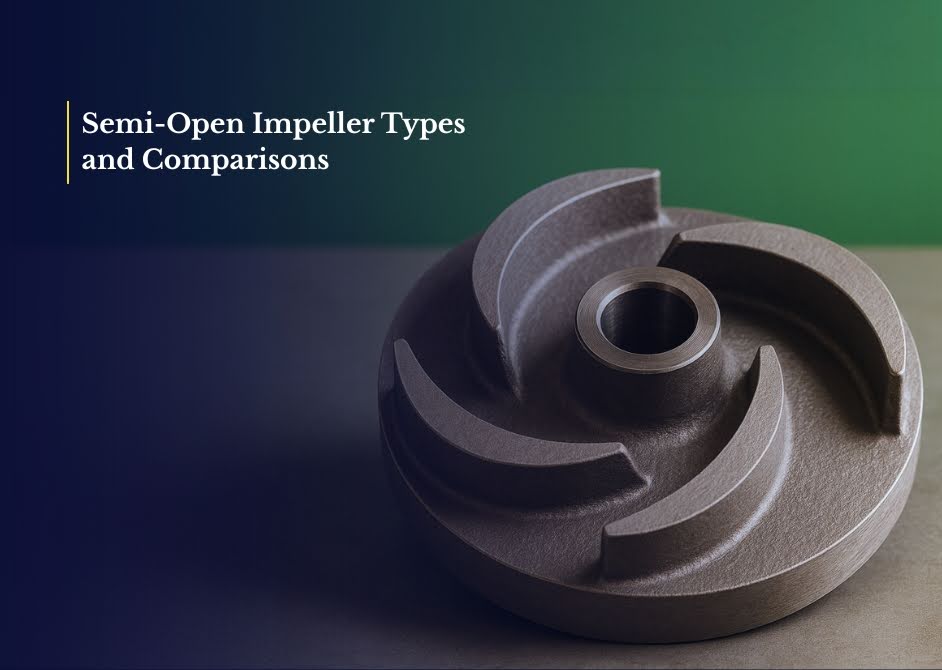

Semi-Open Impeller Types and Comparisons

In industries that rely on fluid handling systems, like chemical processing, pharmaceuticals, oil and gas, and water treatment, the performance of pumps is crucial. Choosing the right impeller can make a significant impact on how well these systems perform, affecting everything from efficiency and reliability to cost-effectiveness.

The right impeller type is a critical decision in these industries, as each has its own set of challenges when it comes to fluid characteristics, pressure, and temperature. One type of impeller that stands out is the semi-open impeller. These impellers offer a balance between efficiency and flexibility, especially when handling fluids with solids, abrasives, or high viscosit4y.

In this blog, we'll compare semi-open impellers with open and closed impellers, highlighting their features and explaining when they are the best choice for specific applications.

Key Takeaways

• Semi-open impellers are ideal for handling fluids with solids, abrasives, or high viscosity, balancing efficiency and flexibility.
• Their design, featuring an open front with no back shroud, allows for better fluid passage, minimizing clogging.
• Applications include industries like chemical processing, pharmaceuticals, oil & gas, and water treatment, where challenging fluids are common.
• Compared to open impellers, semi-open designs offer better durability and reduced maintenance when handling complex fluids.
• Compared to closed impellers, semi-open impellers are more adaptable for handling solids and abrasives but offer slightly lower efficiency.

‍

What Are Semi-Open Impellers and Their Types?

A semi-open impeller is a hybrid between an open impeller and a closed impeller. Unlike the fully enclosed blades of a closed impeller, the semi-open impeller has an open front, but no back shroud. This allows for better handling of complex fluids, especially those that contain solids or abrasives.

Semi-open impellers allow fluid to move more freely through the impeller without clogging, while still providing some of the efficiency benefits of a closed impeller.

Design and Structure:

• Blades: The blades of semi-open impellers are designed to push the fluid forward while also allowing for the passage of larger solids or abrasive materials.
• Open Front, No Back Shroud: The absence of the back shroud allows the fluid to pass through with less resistance, while the hub and blades maintain structural integrity to support the pump's operation.

‍

Materials:

The materials used in semi-open impellers depend on the fluid being pumped. Semi-open impellers are often constructed from corrosion-resistant materials such as:

• Stainless steel (for general chemical resistance)
• Hastelloy (for highly corrosive environments)
• PVDF and PP (for handling harsh chemicals and high temperatures)

‍

Applications of Semi-Open Impellers

Centrifugal pumps with semi-open impellers are used across multiple industries, especially in applications involving challenging fluids. Some industries and processes that benefit from semi-open impellers include:

Key Features of Semi-Open Impellers

Semi-open impellers offer a number of features that make them an attractive choice for centrifugal pumps used in demanding environments.

Comparison of Semi-Open Impeller Types

This section will highlight the distinctions between single-vane, multi-vane, and radial impellers, helping to determine which design is best suited for specific operational needs.

Now, let's dive into a detailed comparison to understand how semi-open impellers stack up against both open and closed impellers in terms of performance, maintenance, and durability.

Semi-Open Impellers vs. Open and Closed Impellers

Below is a comparison of semi-open impellers with open and closed impellers in centrifugal pumps, highlighting the key differences in design, efficiency, handling solids, wear and tear, and maintenance.

1. Semi-Open Impellers vs. Open Impellers

Open impellers are simple in design, but they come with limitations when it comes to handling complex fluids.

Semi-open impellers are preferred when pumping solid-laden, abrasive, or viscous fluids. Open impellers may clog in such applications, while semi-open impellers are designed to handle solids efficiently.

2. Semi-Open Impellers vs. Closed Impellers

Closed impellers are known for their high efficiency in pumping clean, low-viscosity fluids. However, their design makes them less ideal for slurry-laden or abrasive fluids. Semi-open impellers, while slightly less efficient than closed impellers, provide better flexibility in handling complex fluids.

In wastewater treatment, where slurries and abrasive particles are common, semi-open impellers in centrifugal pumps offer the necessary flexibility to handle the solid-laden fluids efficiently. Chemitek’s NM Series non-metallic pumps utilize semi-open impellers to transfer aggressive chemicals and wastewater, providing superior performance and durability in environments prone to clogging and wear.

Now, let's explore the key factors to consider when choosing an impeller type for your pump system.

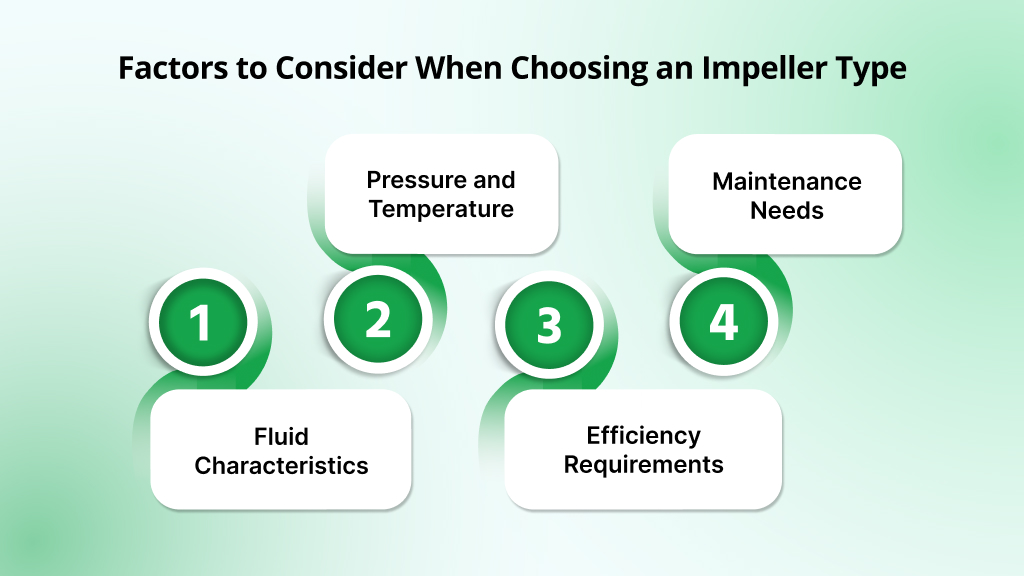

Factors to Consider When Choosing an Impeller Type

Choosing the right impeller for your centrifugal pump requires careful consideration of several critical factors to ensure optimal performance, efficiency, and reliability for your specific application.

1. Fluid Characteristics

If the fluid contains solids, abrasives, or slurries, semi-open impellers are usually the best option. They offer the necessary flexibility to handle complex fluids efficiently. Closed impellers are better for clean, non-viscous fluids but can clog or wear out when handling solids.

2. Pressure and Temperature

For high-pressure or high-temperature applications, semi-open impellers made from corrosion-resistant materials like Hastelloy or PVDF are the ideal solution. They provide the necessary strength and resistance to prevent degradation and ensure longevity.

3. Efficiency Requirements

Closed impellers provide the highest efficiency for clean fluids but may not handle abrasive or solid-laden fluids as well. Semi-open impellers provide a good balance of efficiency and flexibility, making them suitable for industries where slurries or viscous fluids are common.

4. Maintenance Needs

Semi-open impellers are generally easier to maintain due to their simpler design. Closed impellers, while highly efficient, often require more maintenance and can suffer from clogging or wear when exposed to abrasives or solids.

Now, let's take a closer look at how Chemitek's emphasis on top-tier impellers enhances the reliability and effectiveness of their centrifugal pumps.

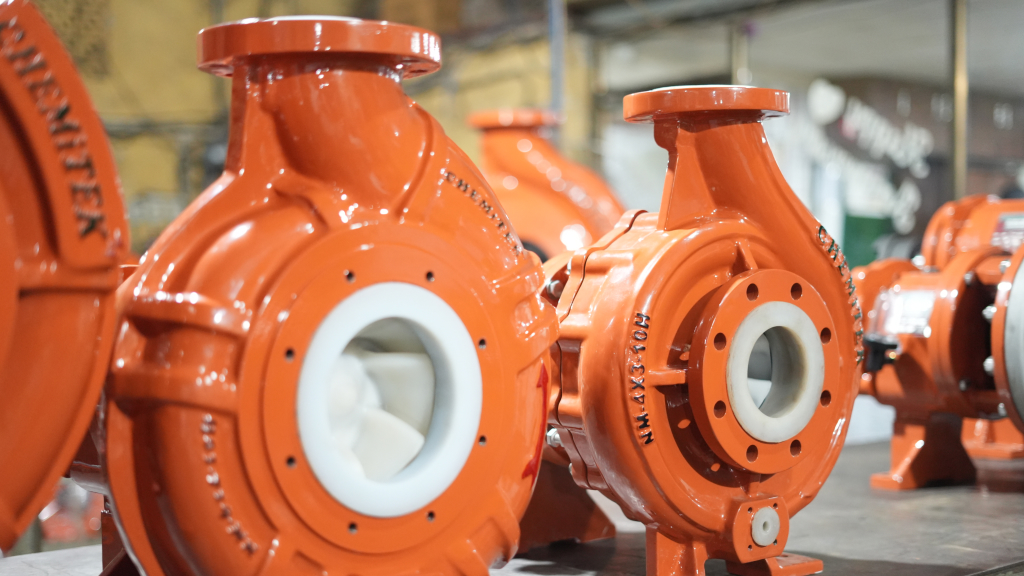

Chemitek’s Expertise in Semi-Open Impeller Solutions

Chemitek is a leader in providing custom-engineered centrifugal pumps designed for challenging fluid-handling applications. With a commitment to innovation, reliability, and efficiency, Chemitek delivers high-performance pump solutions that meet the specific demands of industries handling corrosive, abrasive, toxic, and high-temperature fluids.

Chemitek offers a diverse range of metallic and non-metallic centrifugal pumps, ensuring that every application is met with the right product for its specific needs.

1. Metallic Pumps

Built from high-quality materials such as SS316, SS316L, Alloy 20, and Hastelloy, our metallic pumps are designed to handle high-pressure, high-temperature, and chemically aggressive fluids with ease.

2. Non-Metallic Pumps

For sectors that handle corrosive chemicals and abrasive fluids, our non-metallic pumps offer the ideal solution. Constructed from PVDF, PP, and ETFE, these pumps are water-cooled, seal-less, and highly resistant to chemical degradation.

These pumps operate efficiently at temperatures up to 210°C and provide a long-lasting, low-maintenance solution for aggressive fluid handling.

By utilizing the latest in CAD/CAM technology and materials science, Chemitek ensures every pump is precisely crafted for maximum efficiency and low lifecycle costs. Our commitment to quality is reflected in every product we deliver, from initial design to final implementation.

Conclusion

In industries requiring reliable and efficient fluid handling, choosing the right impeller is crucial. Semi-open impellers strike a balance between closed impellers' performance and open impellers' simplicity. They effectively handle complex fluids with solids, abrasives, or high viscosity, making them ideal for chemical processing, pharmaceuticals, oil & gas, and water treatment. Their durability and ease of maintenance help minimize downtime and maximize productivity.

When choosing the correct impeller for your centrifugal pump, consider factors like fluid characteristics, efficiency needs, pressure, and temperature to find the best fit. For industries dealing with harsh or solid-laden fluids, semi-open impellers are a reliable and efficient solution.

If you're looking for expert guidance on selecting the right impeller or need high-performance centrifugal pumps, talk to us today. We are here to provide customized solutions to meet your fluid handling needs.

FAQs

1. Why are semi-open impellers preferred for abrasive fluids?
Semi-open impellers are designed to handle fluids with suspended solids and abrasives without clogging or excessive wear. Their open front and absence of a back shroud minimize the risk of blockage and enhance their ability to pass solids efficiently.

‍2. What materials are typically used in semi-open impellers for high-temperature applications?
For high-temperature environments, semi-open impellers are often made from corrosion-resistant materials like Hastelloy, PVDF, and PP. These materials withstand both the heat and corrosive nature of certain fluids, ensuring the longevity of the pump.

3. Are semi-open impellers a good choice for all industrial applications?
While semi-open impellers are excellent for handling abrasive, viscous, and slurry-laden fluids, they may not be necessary for applications involving clean, low-viscosity fluids. In such cases, closed impellers may offer higher efficiency.

4. What makes semi-open impellers easier to maintain than closed impellers?
Semi-open impellers feature a simpler design, with fewer components at risk of clogging. This design makes it easier to inspect and maintain, reducing downtime and maintenance costs compared to the more intricate closed impellers.

5. How do semi-open impellers compare in energy efficiency to other types?
While semi-open impellers offer better efficiency than open impellers, they are slightly less efficient than closed impellers, especially for clean fluids. However, their ability to handle complex fluids makes them a more suitable choice for certain applications, balancing efficiency with flexibility.
